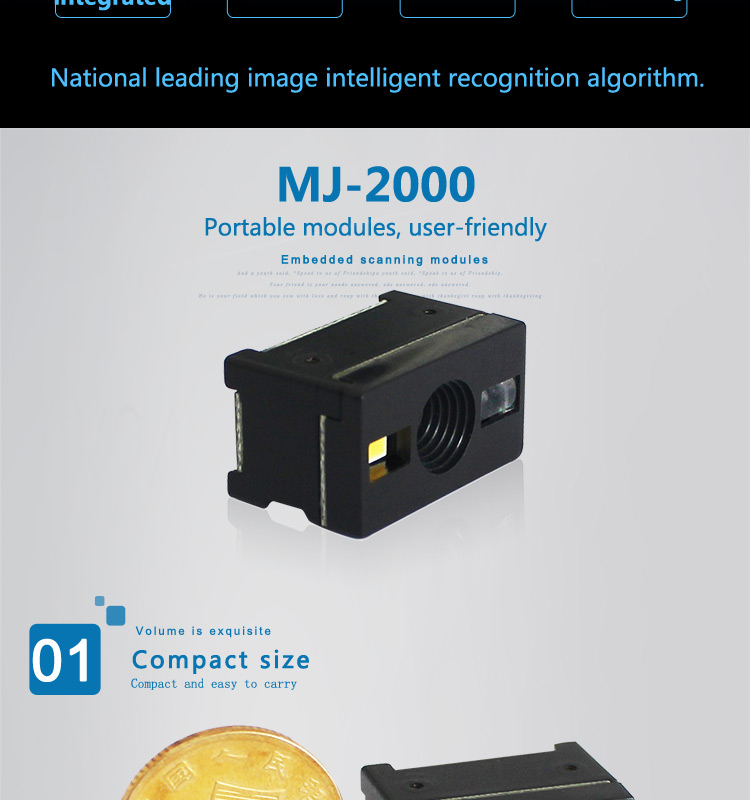

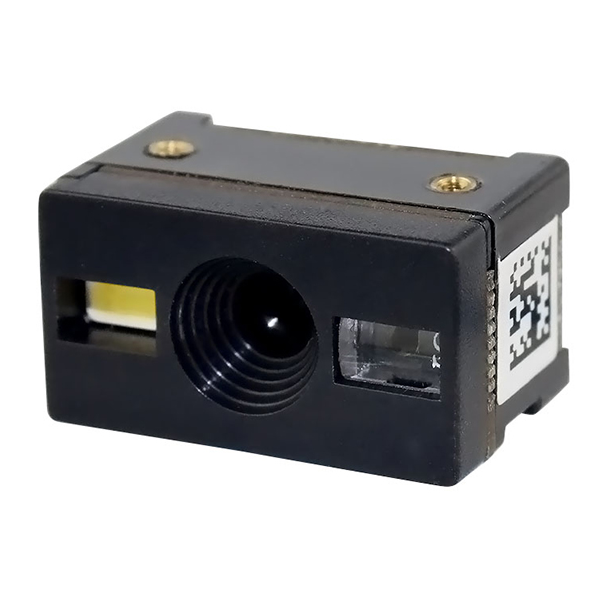

MJ-2000 OEM Barcode Scanner Module

Share：

Product Model：MJ-2000

Data type：CMOS

Reading Mode：Normal mode/Auto-scanning Mode

Interface：TTL232

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

Parameter
TypeCMOS / Mini Size
Resolution648x488

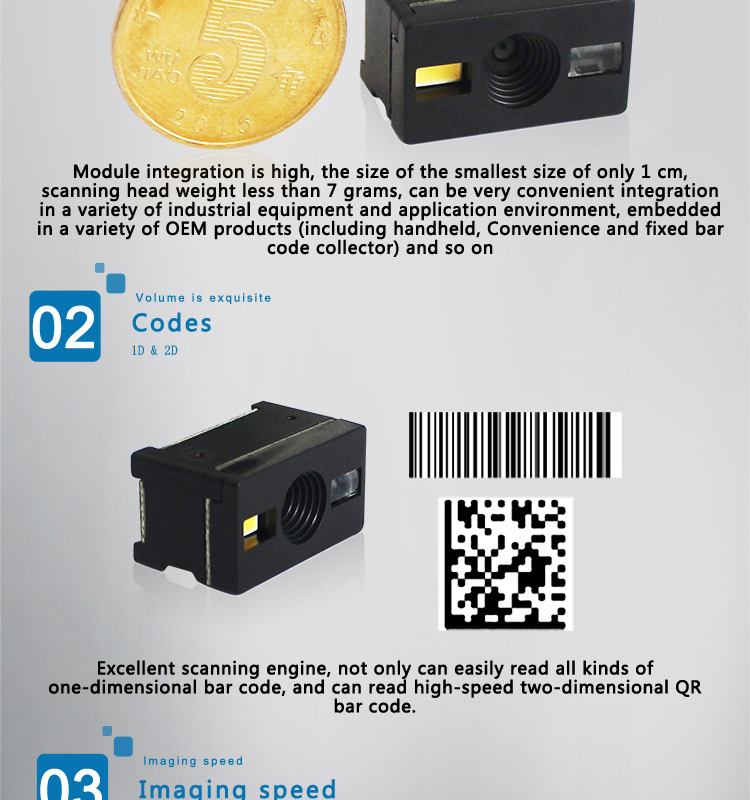

Barcode capability2D:QR Code, Data Matrix, PDF417.

1D:EAN,UPC,Code39,Code93,Code128,
UCC/EAN 128, Codabar,
Interleaved 2 of 5, ITF-6,ITF-14,
ISBN,ISSN, MSI-Plessey,GS1 Databar,
GS1 Composite Code,Code 11,Industrial25,
Standard 25,Plessey,Matrix 2 of 5
Precision≥ 5mil
Interface supportedTTL-232 (DC 3.3V±5%)
Scan of depthEAN-13  40mm-250mm (15mil)
Code39 50mm-120mm（5mil 10byte)
QR Code  25mm-240mm (20mil 16byte)
Data Marix 50mm-90mm（10mil 20byte）
PDF 417  30mm-130mm (6.67mil 7byte)
print contrast≥ 25%
Roll360°@ 0°Pitch and 0°Skew
Pitch65° @ 0°Roll and 0°Pitch
Skew60°@ 0°Roll and 0°Skew
Ambient light0 - 100,000 LUX

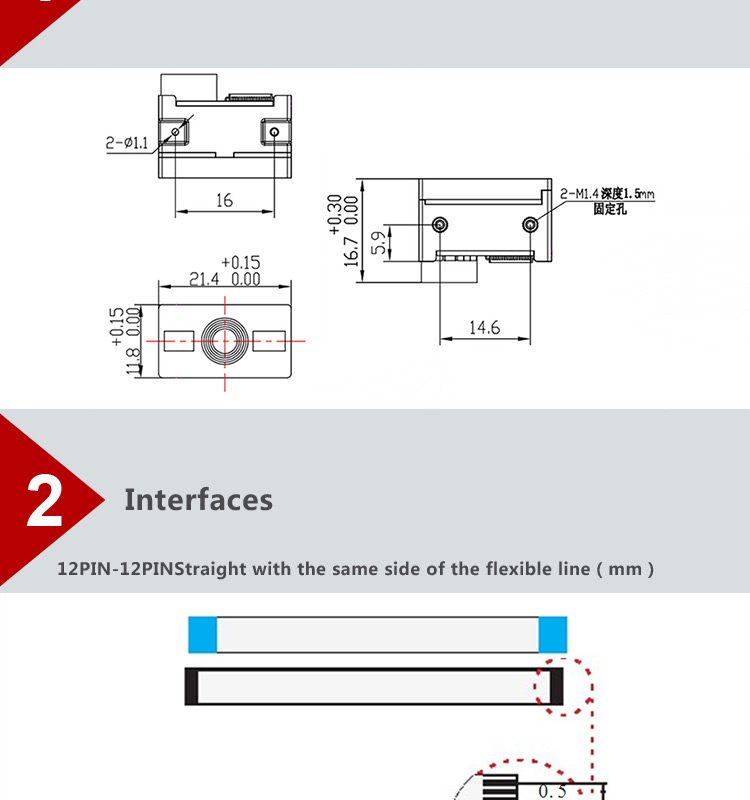

Dimensions22 L mm × 12.0 mm H × 17.0 W mm
Voltage3.3V DC
Current

Working    120 mA
Idle              50 mA

Sleep             2 mA

Weight6g
Working temperature-20℃～ +60℃
Storage temperature-40℃～+80℃
Working humidity5% - 95%(Non-condensing)


Product documentation：
