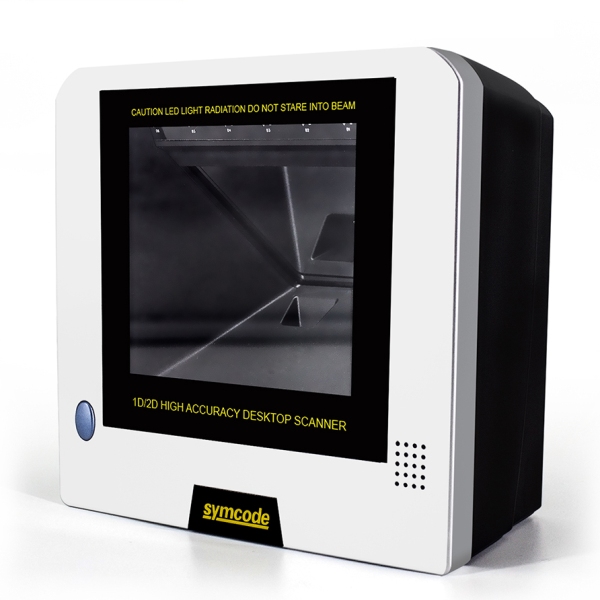

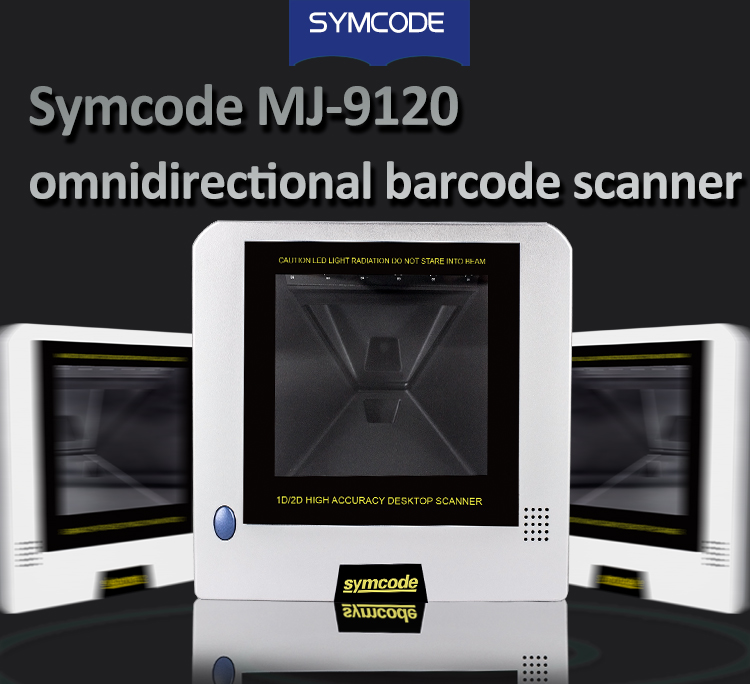

MJ-9120 Omni-directional 2D Desktop Barcode Scanner

Share：

Product Model：MJ-9120

Data type：Laser / CMOS

Reading Mode：Auto-scanning Mode

Interface：USB

Wireless：

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

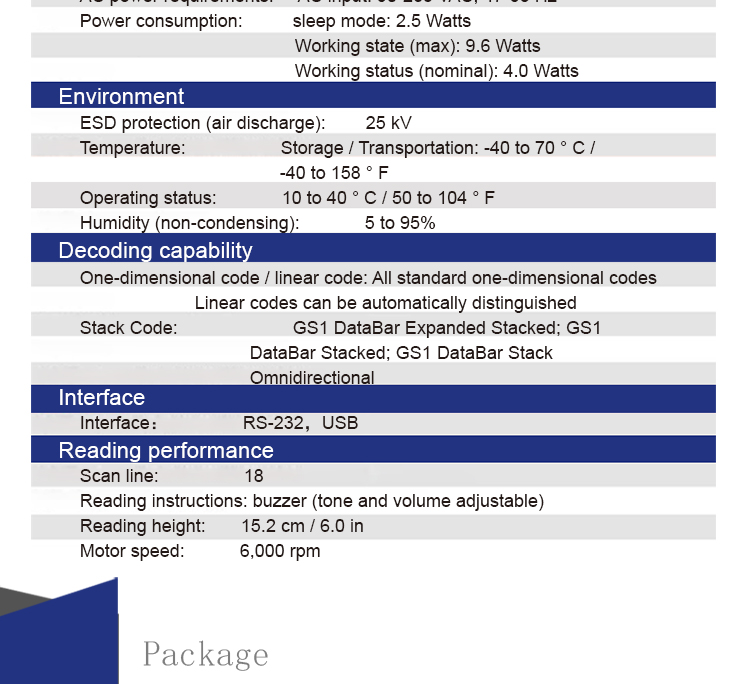

Parameter
Type2D Desktop Barcode Scanner
MaterialABS
InterfaceUSB,RS232
ProcessorARM32-bit
Light source617nm LED,6500K LEDs
Image sensor640*480 CMOS
Resolution≥4mil/0.1mm@PCS90%
Scan angleRoll：0-360°
Pitch：±65°
Yaw：±60°
Scan modeSupport Autosense / Support Commands
Print contrast25%PCS
PowerDC 5V
Codes type1D：EAN-8, EAN-13, Codabar, CODE 39, CODE 93, CODE 128, China Post, GS1-128, UPC-A, UPC-E,  ISBN/ISSN, ISBT , Interleaved 2 of 5，Standard 2 of 5, Matrix 2 of 5，Industrial 2 of 5 , MSI, RSS, ITF14, Telepen.

2D：QR Code, Micro QR Code, Data Matrix, PDF417, Micro PDF417, Maxicode, Aztec, Hanxin.
Scan of depth                 Code 39 0.1mm(4mil) 0mm 40mm
Code 39 0.127mm(5mil) 0mm 70mm
Code 39 0.5mm(20mil) 10mm 50mm
UPC/EAN 0.33mm(13mil) 0mm 250mm
QR Code 20.0mil 0mm 20mm
Data Matrix 10mil 1mm 40mm
PDF 417 6.8mil 0mm 60mm


Product documentation：
