MJ-390 Kiosk Wiegand Barcode Scanner / NFC reader

Share：

Product Model：MJ-390

Data type：1D / 2D Barcode

Reading Mode：AutoSense

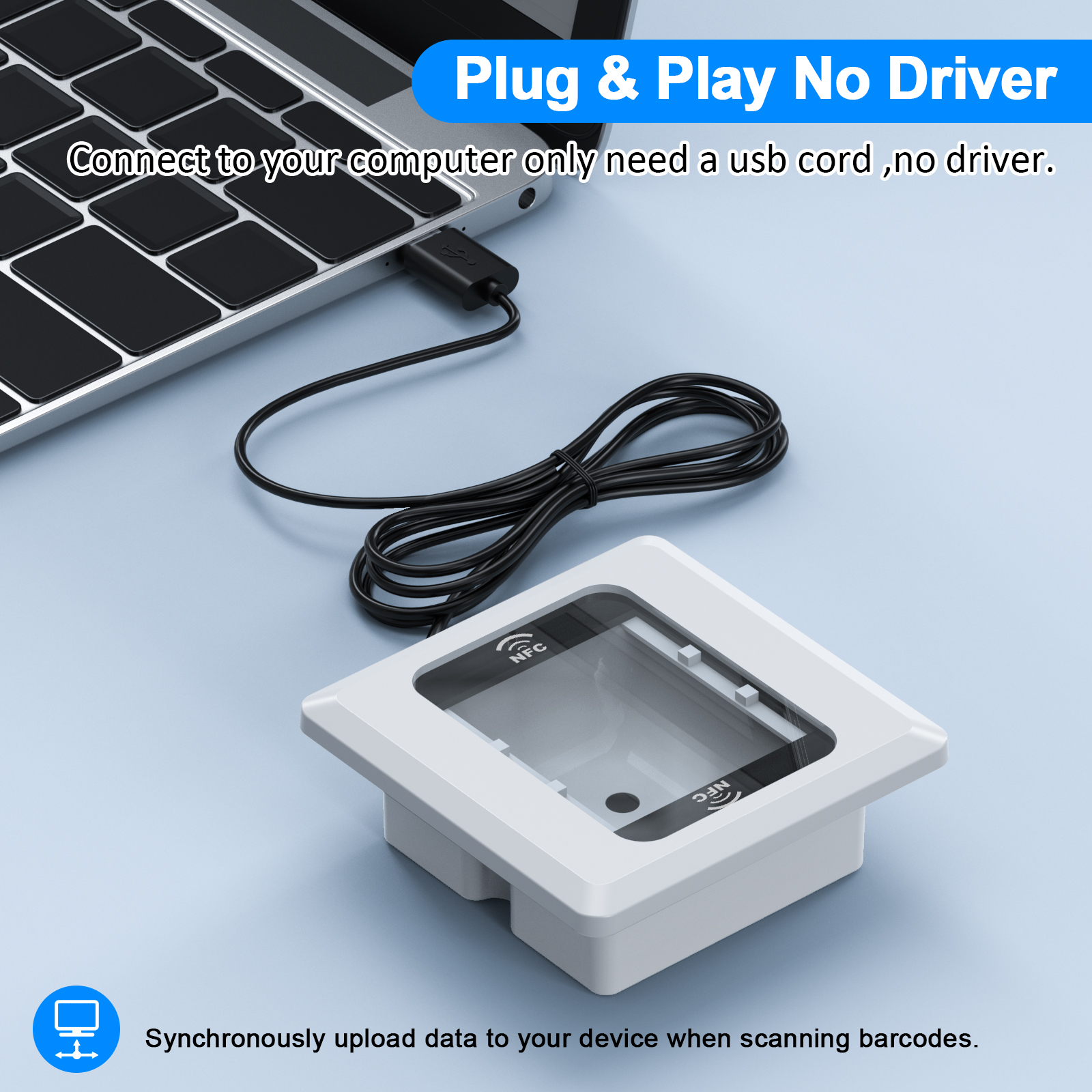

Interface：USB / Wiegand

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video


Image Sensor0.3 MP CMOS sensor chip
Resolution:640 x 480 pixel
Precision≥5 mil
Print Contrast≥25%
Ambient Light0~100,000 LUX
Interface: USB / USB com / RS232
Decode capability:1D:Code128, EAN-13,Code39, UPC-A, Code 93, etc.

2D:PDF417 / QR code / Data Matrix  / Aztec / Maxicode.
Depth of Field:EAN-13  50mm-200mm (13mil)
Code39 40mm-90mm（5mil 10 bytes）
QR Code  25mm-240mm (20mil 16 bytes)
Data Matrix 50mm-90mm（10mil 20 bytes）
PDF 417  30mm-130mm (6.67mil 7 bytes)
Environmental:CE and Rohs
Support Operating system: Win XP / Win 7 / Win 8 / Win10

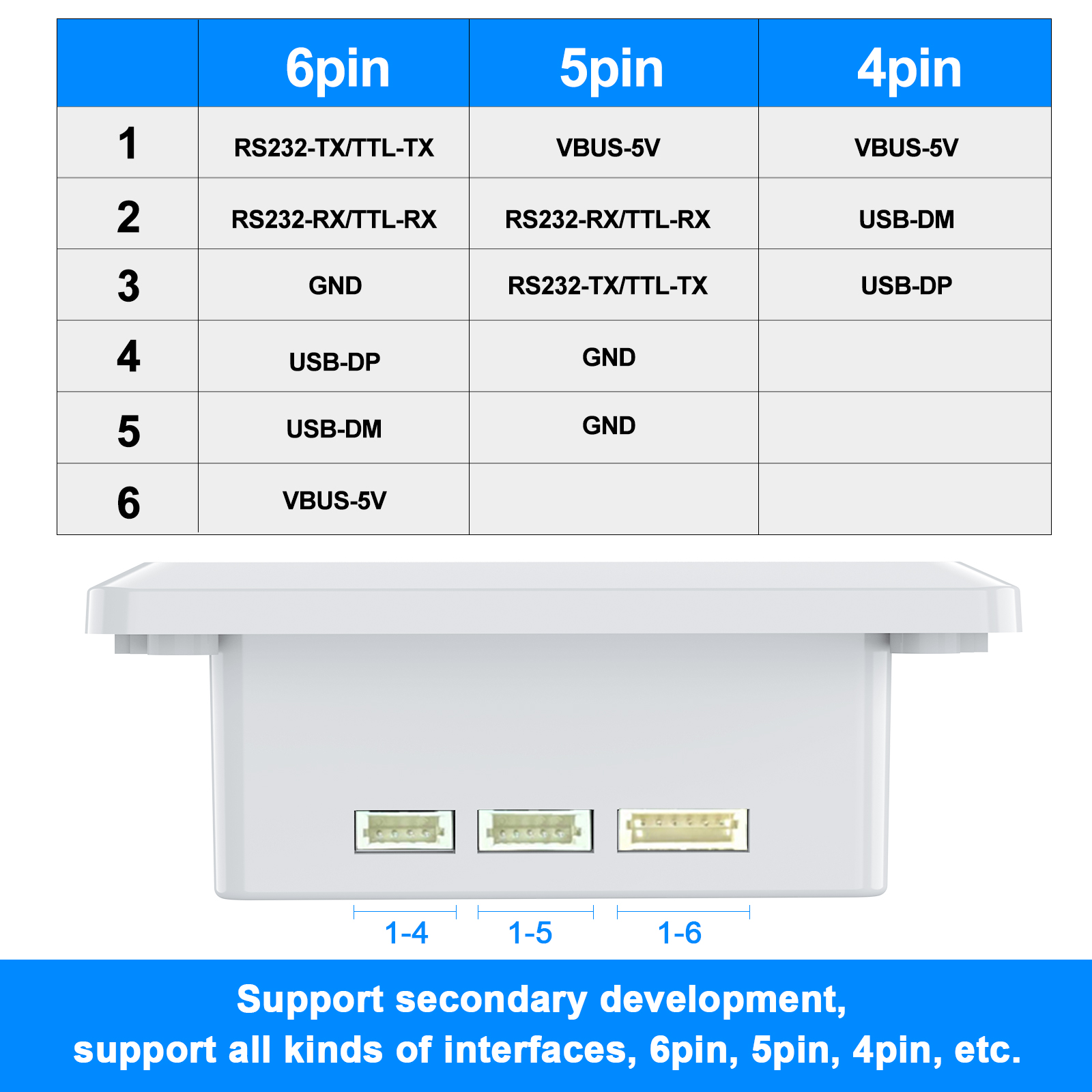

Interface: USB / Wiegand / 4-6pin
Scan Angle:Corner 360°，
Pitch angle ± 55°，
Skew toleranc ± 55°
Field angle:diagonal 42°
Working Voltage:DC 5 V
Working currents:160mA
Standby currents20mA
Working Temperature:-20℃~+50℃
Storage Temperature:-40℃~+70℃
Working Humidity:5%~95%（no condensation）

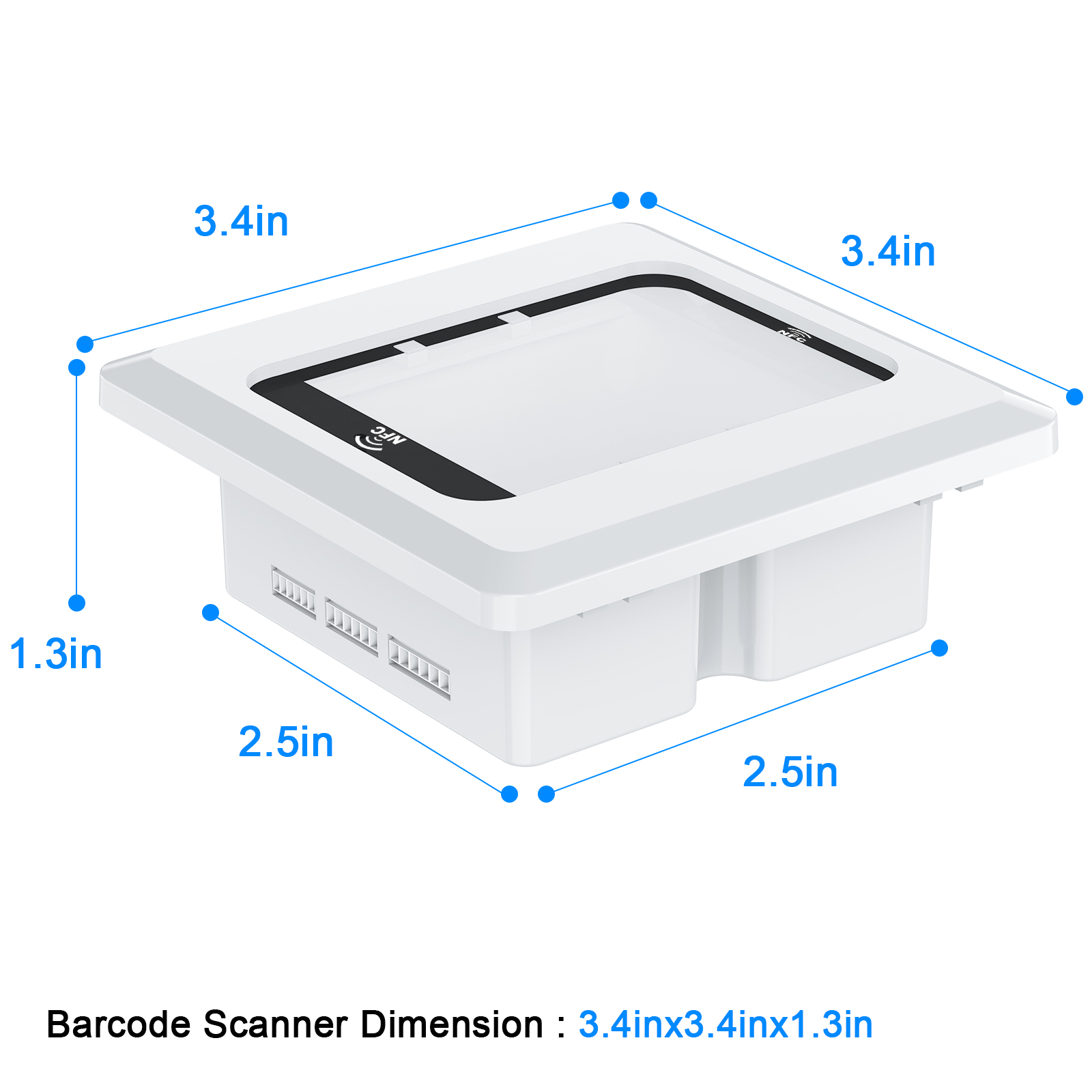

Dimensions:  3.4 x 3.4 x 1.3 inch
Weight:  82g



Product documentation：
