| Image Sensor | 0.3 MP CMOS sensor chip |
| Resolution: | 640 x 480 pixel |
| Precision | ≥5 mil |
| Print Contrast | ≥25% |
| Ambient Light | 0~100,000 LUX |

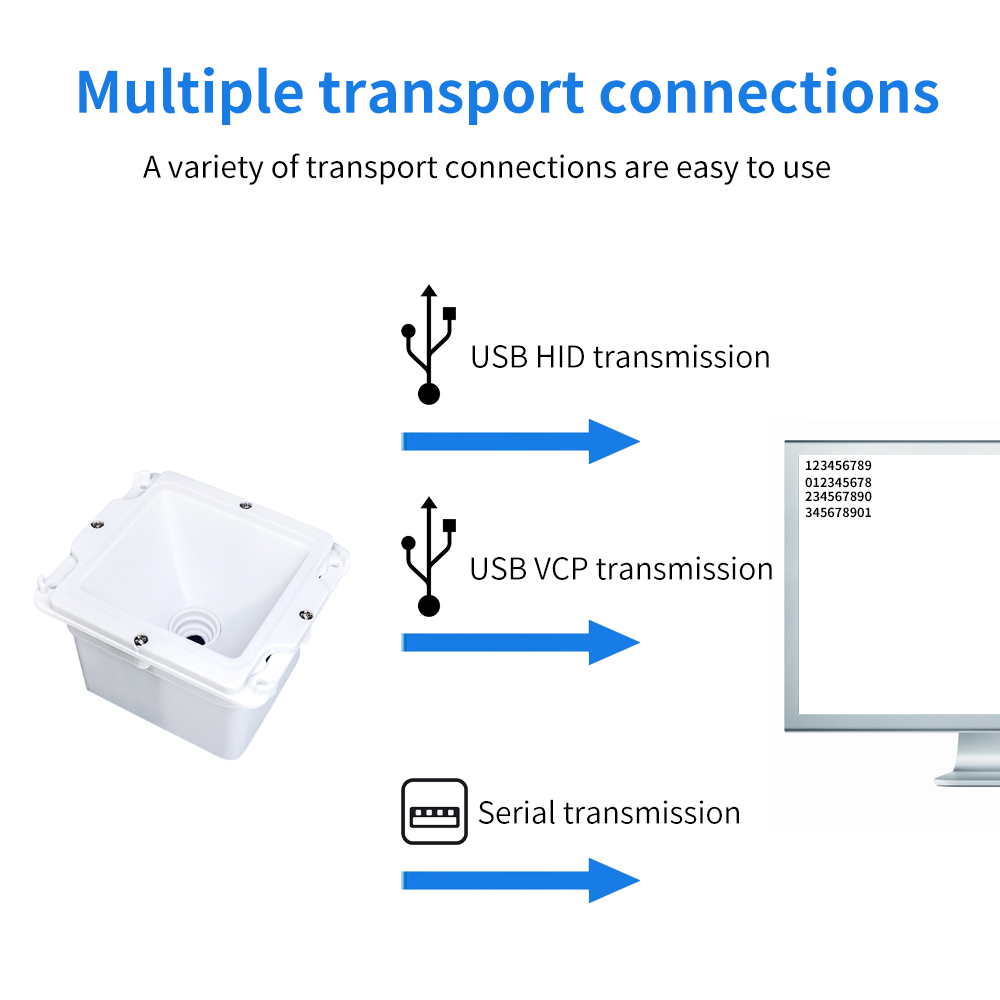

| Interface: | USB / USB com / RS232 |

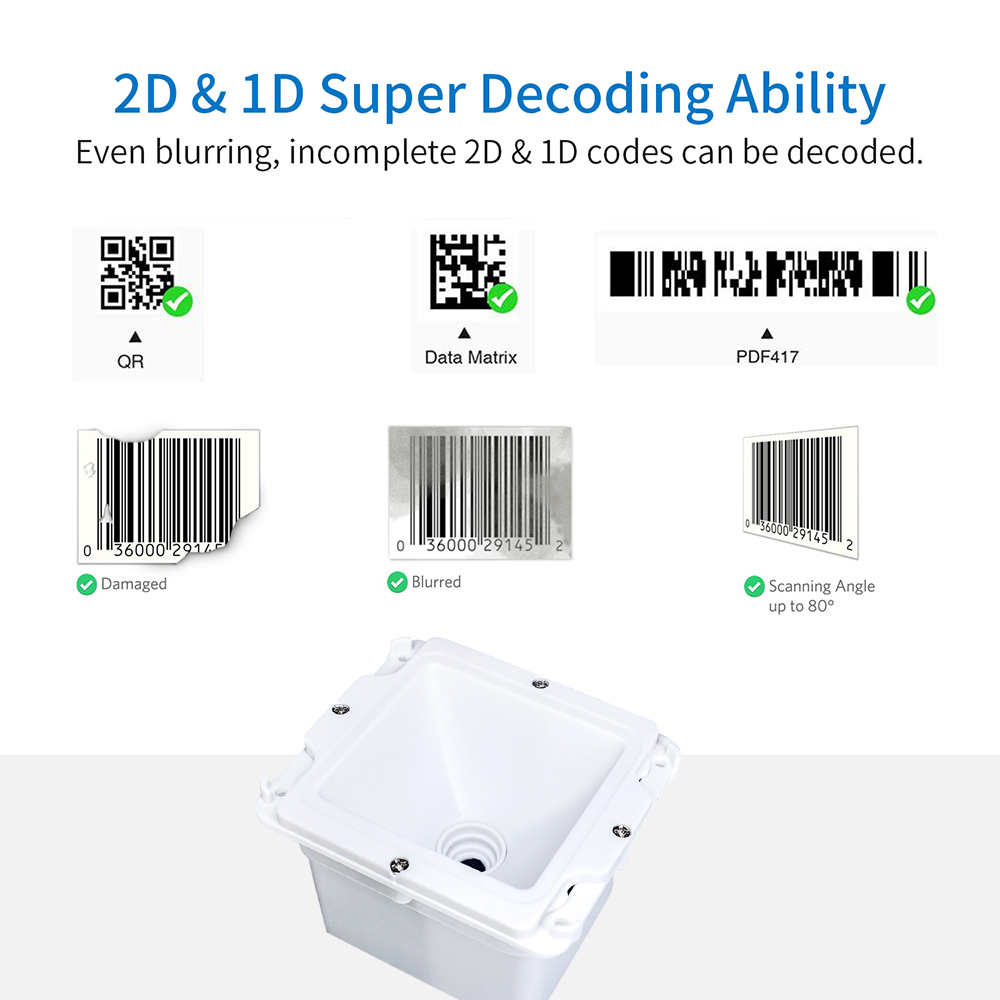

| Decode capability: | 1D:Code128, EAN-13,Code39, UPC-A, Code 93, etc.
2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode. |
| Depth of Field: | EAN-13 50mm-200mm (13mil)
Code39 40mm-90mm（5mil 10 bytes）
QR Code 25mm-240mm (20mil 16 bytes)
Data Matrix 50mm-90mm（10mil 20 bytes）
PDF 417 30mm-130mm (6.67mil 7 bytes) |
| Environmental: | CE and Rohs |
| Support Operating system: | Win XP / Win 7 / Win 8 / Win10 |
| Interface: | USB |
| Scan Angle: | Corner 360°，
Pitch angle ± 55°，
Skew toleranc ± 55° |
| Field angle: | diagonal 42° |
| Working Voltage: | DC 5 V |
| Working currents: | 160mA |
| Standby currents | 20mA |
| Working Temperature: | -20℃~+50℃ |
| Storage Temperature: | -40℃~+70℃ |
| Working Humidity: | 5%~95%（no condensation） |

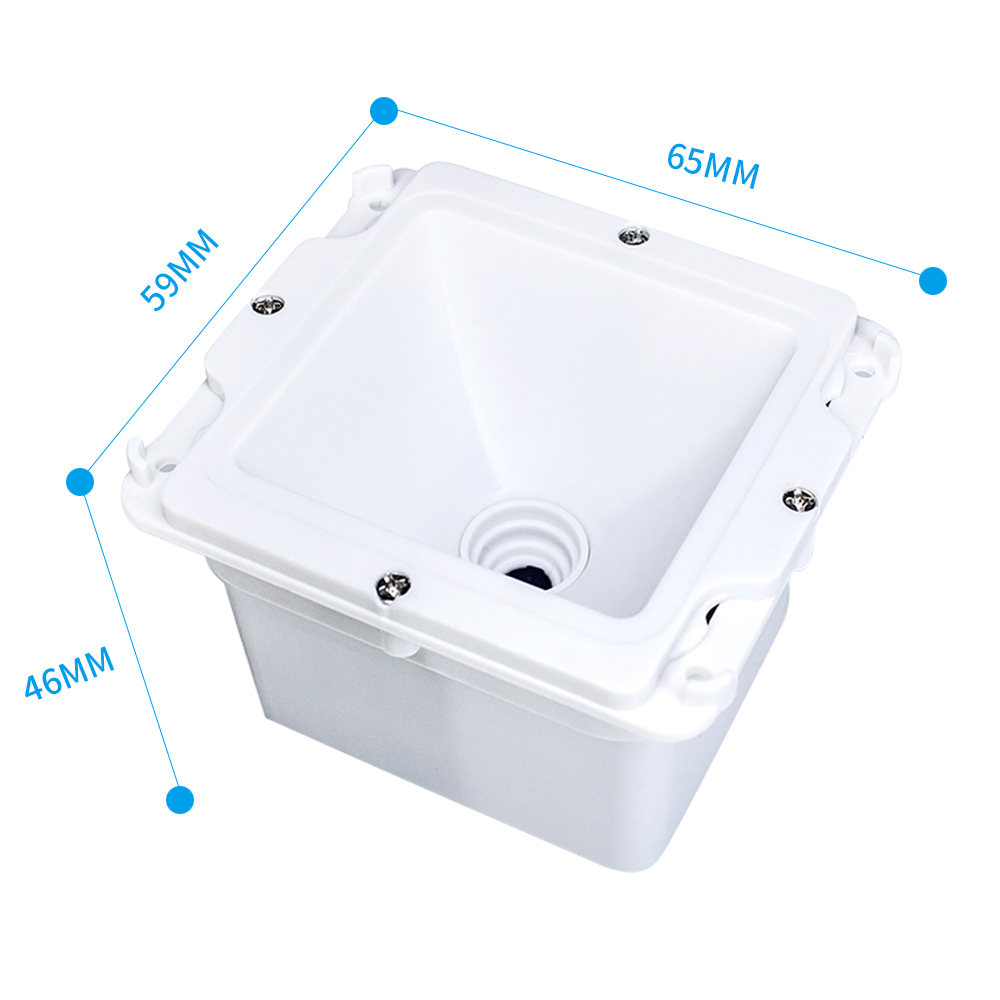

| Dimensions: | 65 x 59 x 46 mm |
| Weight: | 62g |
