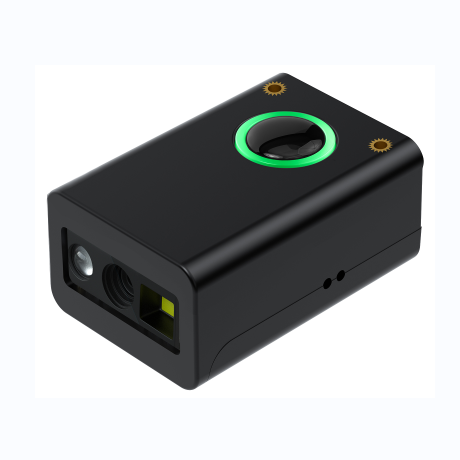

MJ-1090 Fixed Mount Scanner symcode

Share：

Product Model：MJ-1090

Data type：1D / 2D

Reading Mode：Normal mode/Auto-scanning Mode

Interface：USB / TYPE-C / 4pin socket

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video


Parameter
Model:MJ-1090
Resolution: 640*480
Precision: ≥ 5 mil
Depth of scan field: 40mm~300mm
Print contrast:≥ 30 %
Roll / Pitch / Yaw:360°, ±60°, ±60°
Ambient Light Immunity:0~100,000 LUX
Decode capability:1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix etc
Environmental:Operating Temperature:0 to 50°C
Storage Temperature:-40 to 60°C
Humidity:5% to 95% relative humidity,non-condensing
Drop Specifications: 1.8m drops to concrete
Interface: USB / Type-C / 4 pin socket

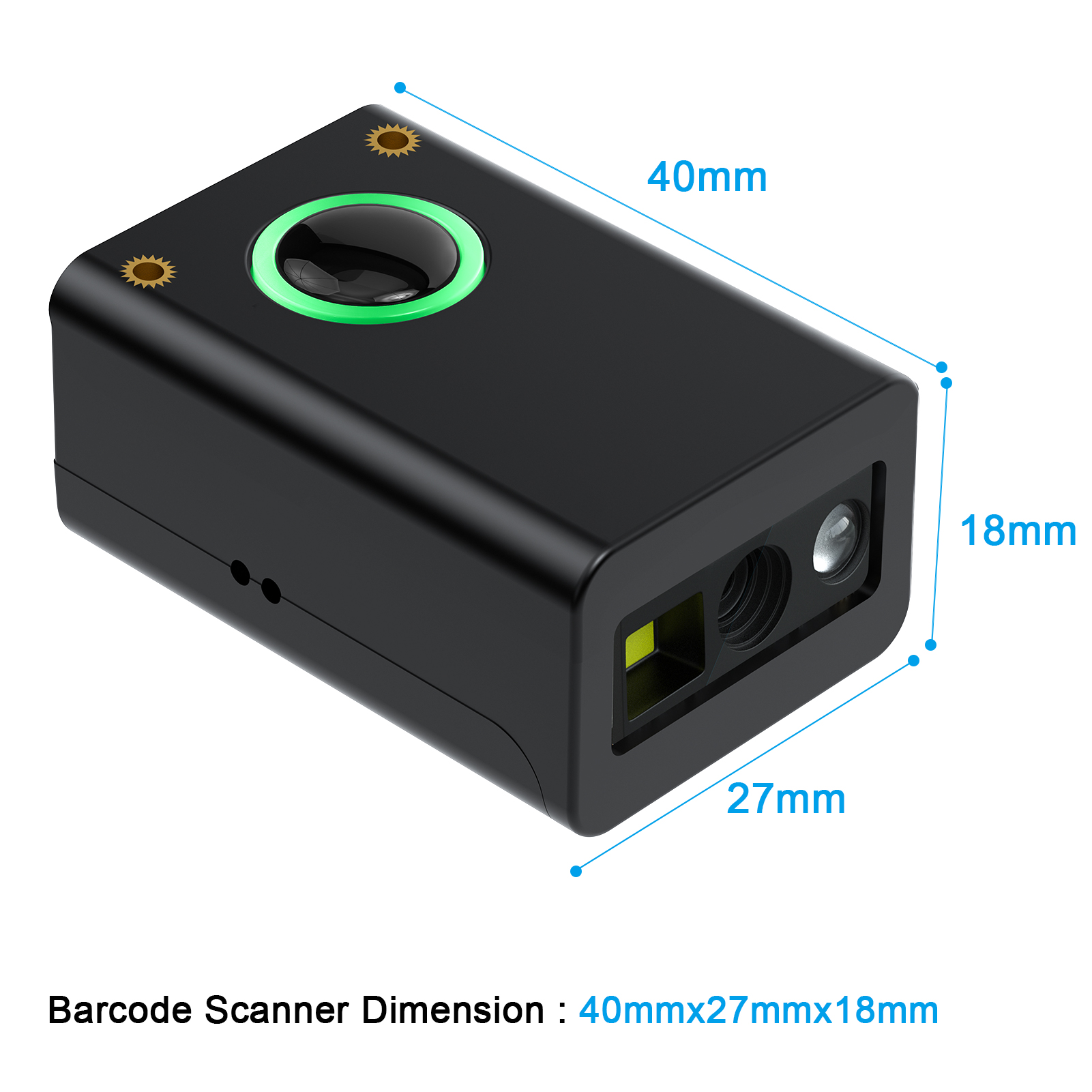

Dimensions:  L 40mm*W 26mm*H 17mm
Weight:  14g




Product documentation：
