MJ-1202G Wireless Barcode Scanner - Replaceable Battery Design

Product description Product parameters Manual Download Driver Download Video

Parameter
Parameter
Type	2D Bluetooth Scanner + Replaceable Battery Design
Sensor	CMOS

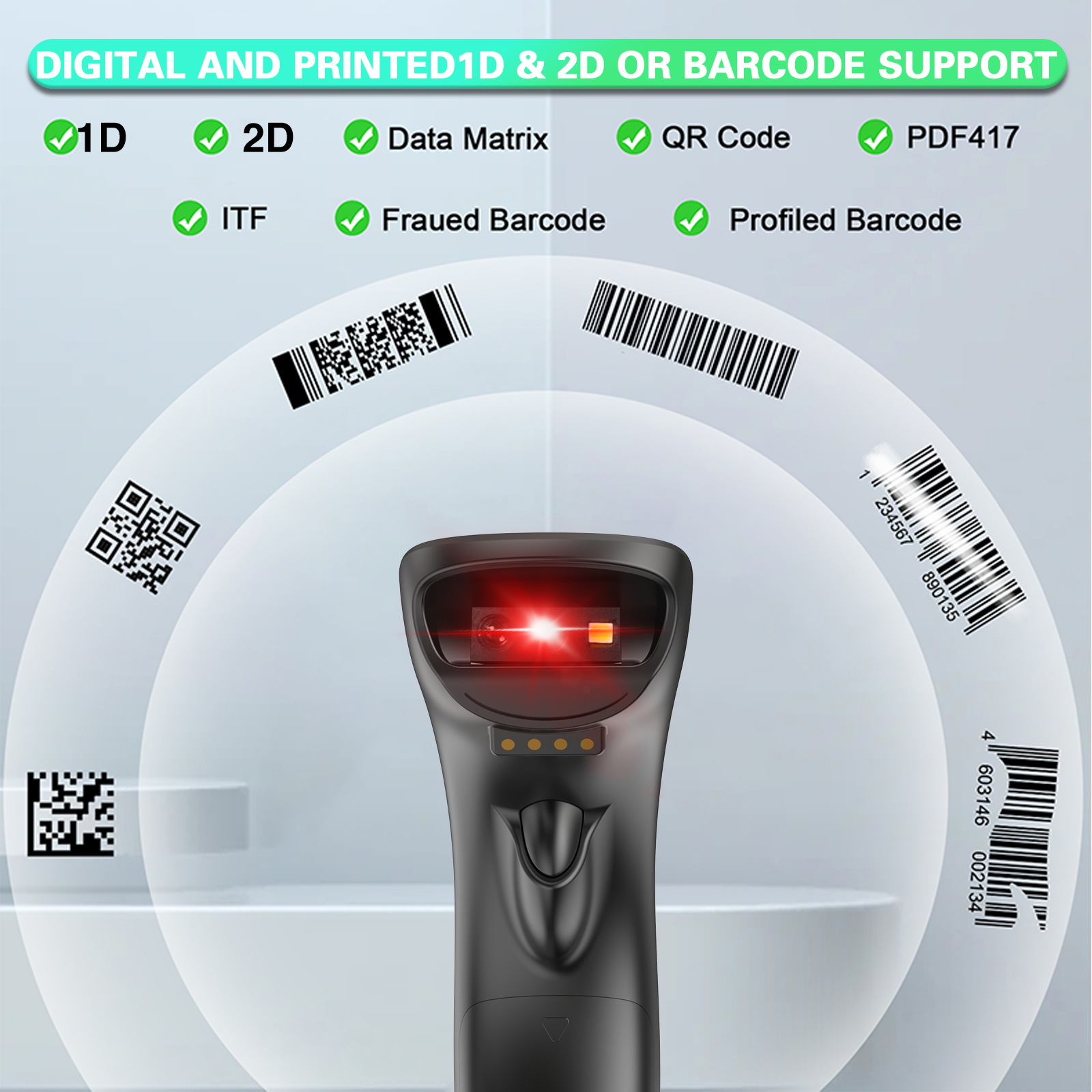

Barcode scanner Optical	Sensor: 640 x 480 pixels Resolution: 5 mil Print Contrast Ratio: 30% Scanning angle from 45° (H) x 45° (V) Depth of Field: 40-380mm Supported Symbologies: 1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc. 2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode






Operation System	Support iOS / Android and Windows OS
Communication	3-in-1 connection USB+2.4GHz+ Bluetooth: -USB Connection -2.4G wireless: 50M -Bluetooth Distance:10 meters (visual) Communication Mode: HID ,BLE.SPP

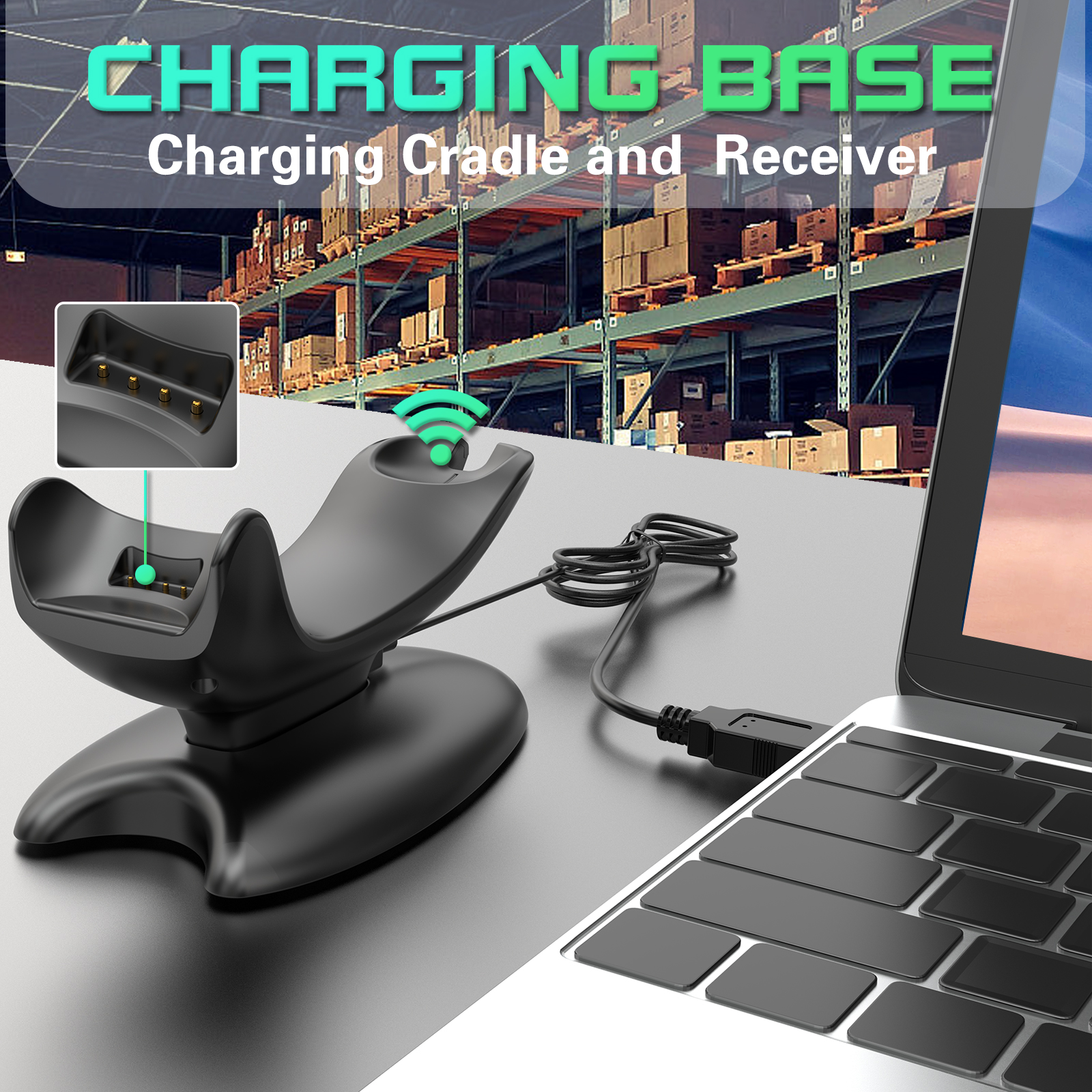

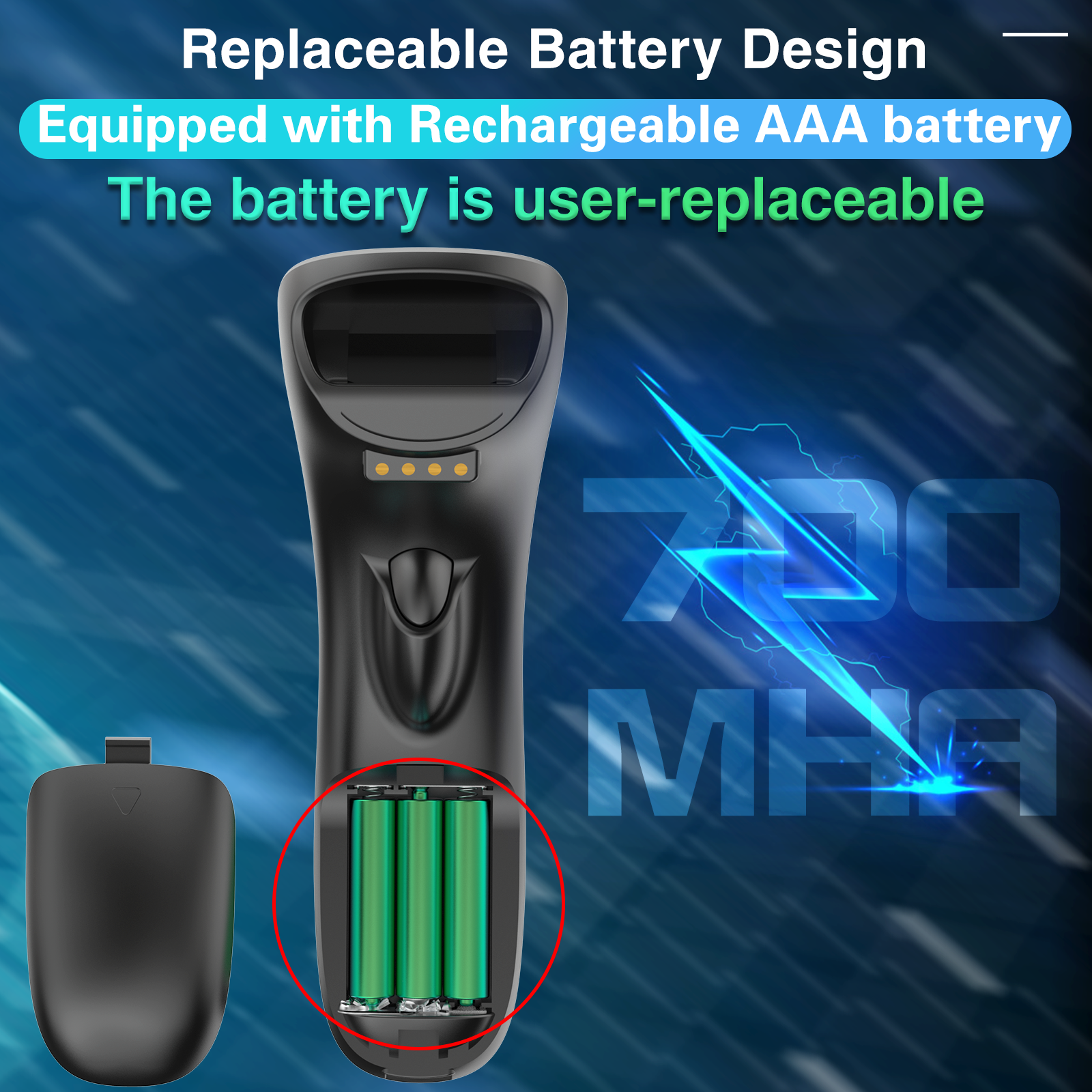

Power	Versioin A: Equipped with Rechargeable AAA battery Scanner (battery) is charged by Cradle The battery is user-replaceable Versioin B: Equipped with Non-rechargeable AAA battery The Cradle does not support charging function The battery is user-replaceable
Memory	16Mb (Ability to store more than 50000 codes)
Durability	Temperature in operation: -20 to 50 oC Temperature in storage: -40 to 70 oC Humidity in operation: 5 - 95% (non-condensing) Humidity in storage: 5 - 95% (non-condensing)
Physical	Dimensions (w x h x d): Scanner:188mm x 55mm x 50mm Cradle: 177mm x 95mm x 88mm Weight: 182g (include battery)

Product documentation：
