Type

Portable 1D 2D Wireless Barcode Scanner with LCD Display

CPU

32-bit

Operating indicators

1 LED (blue/green)

Operating keys

2 key total

Barcode scanner Optical

Sensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 30%
Depth of Field: 6-30cm

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / DM etc

Operation System

Support iOS / Android  and Windows OS

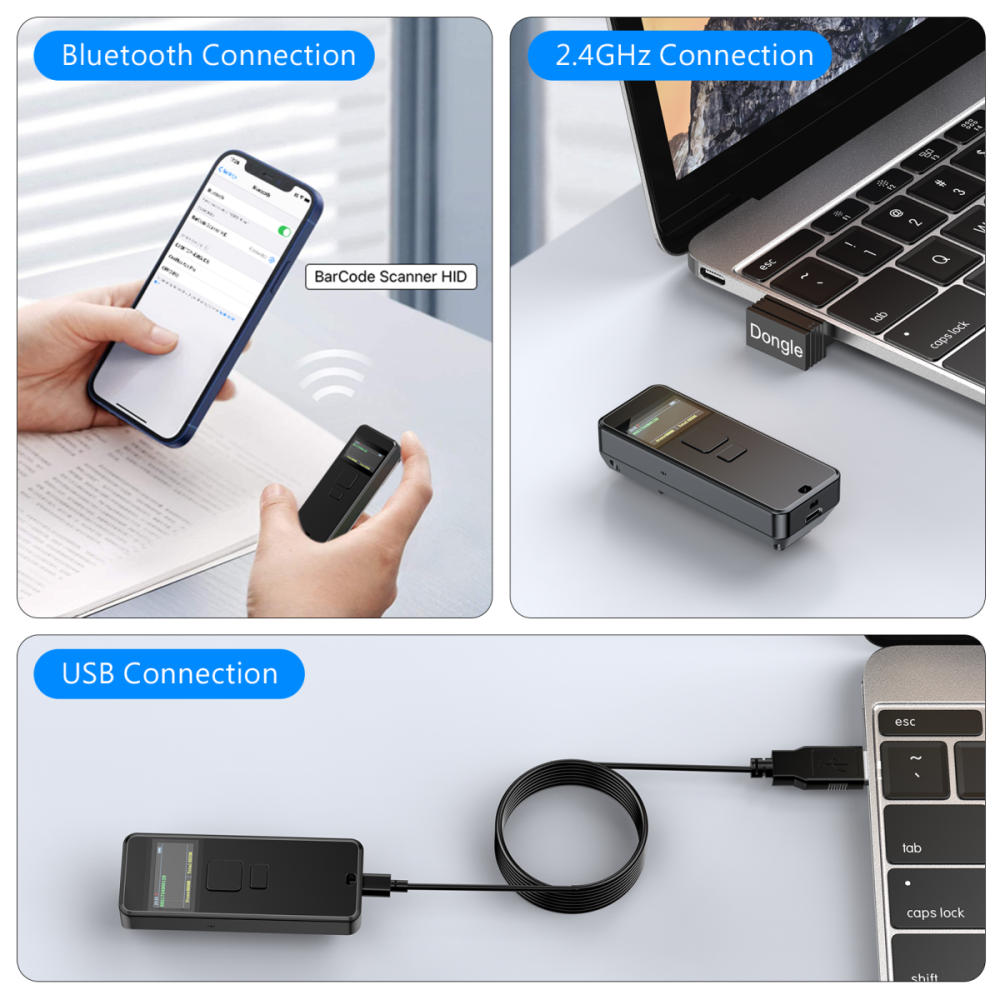

Communication

Bluetooth module 6.1
Communication Mode: SPP, HID

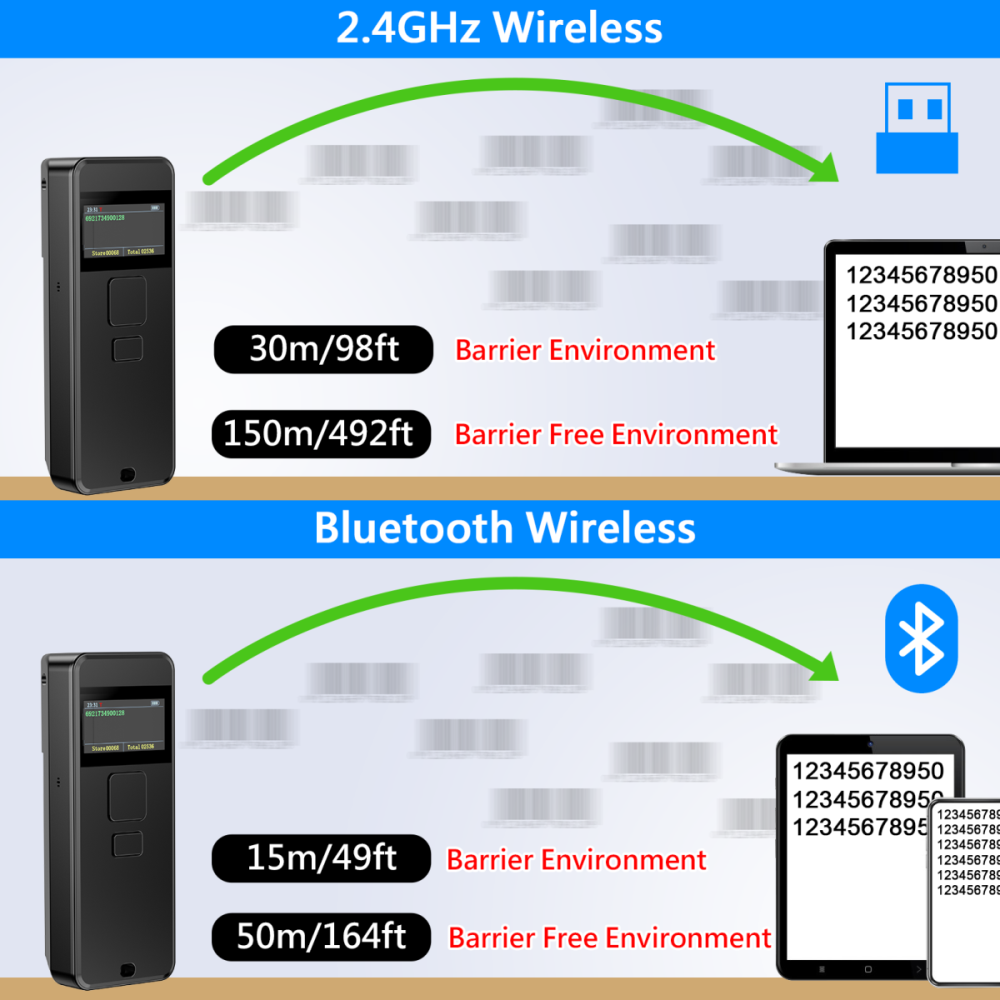

Distance:10 meters (visual)

2.4G wireless

Distance:50 meters (visual)

USB connection

Power

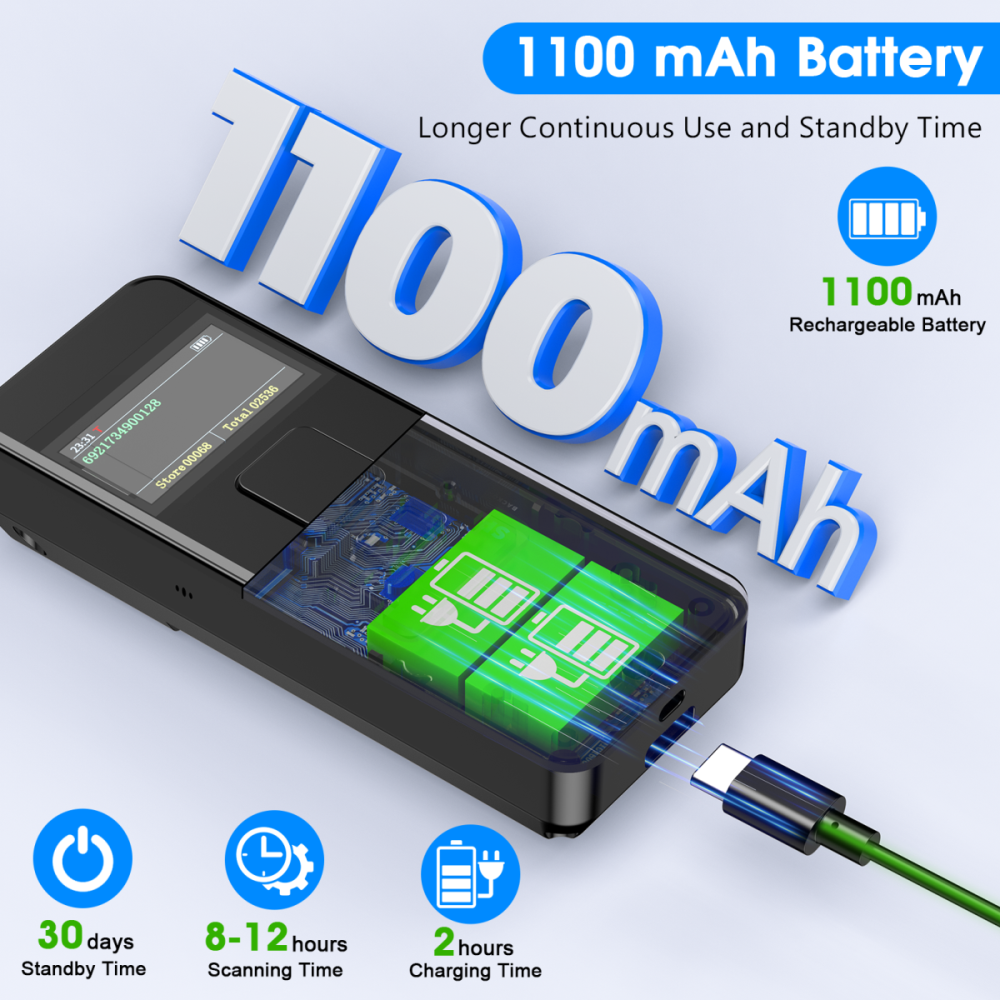

Battery: 3.7V 1100mA Li-ion
Current Consumption: 30mA
Operating Current :100mA

Memory

16Mb

Durability

Temperature in operation: 0 to 50 oC / 32 to 122 oF
Temperature in storage: -10 to 50 oC / -4 to 140 oF
Humidity in operation: 20 - 85% (non-condensing)
Humidity in storage: 20 - 85% (non-condensing)

Physical

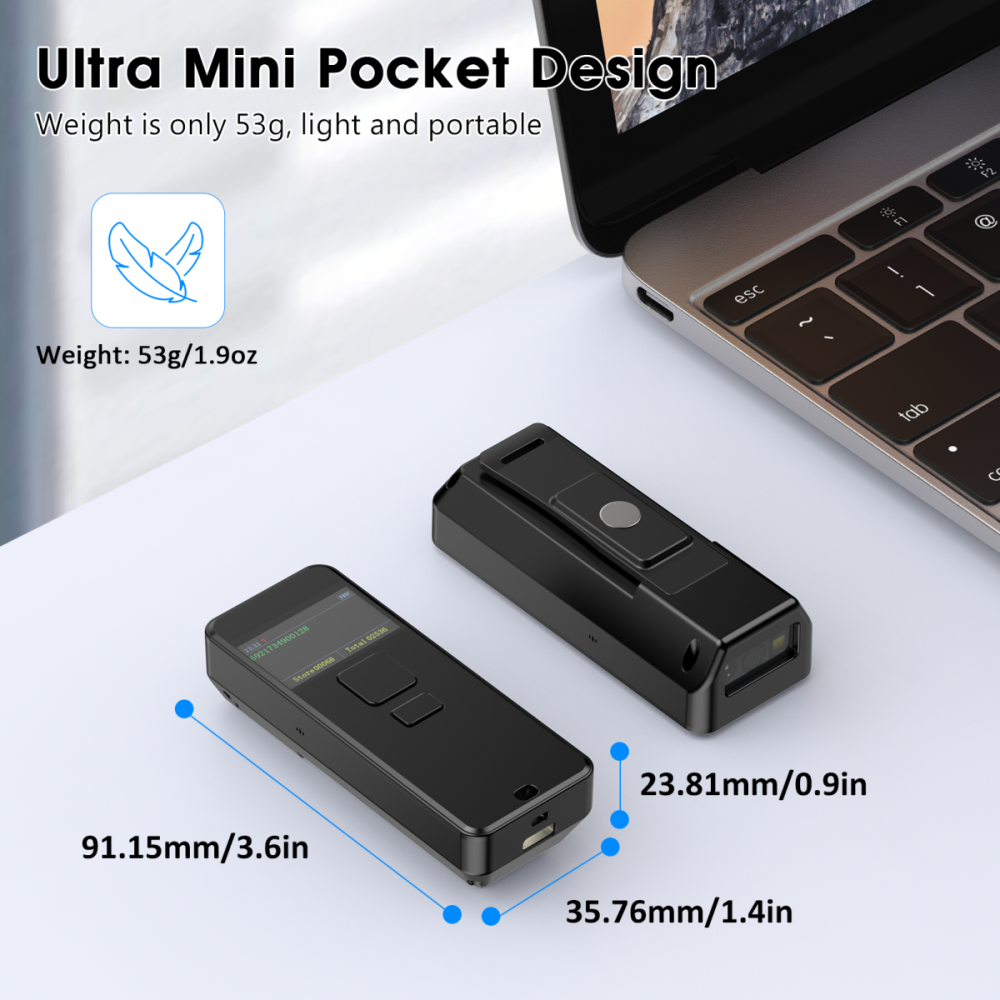

Dimensions (w x h x d): 91.5mm x 35.76mm x 23.81mm
Weight: 53g (include battery)
