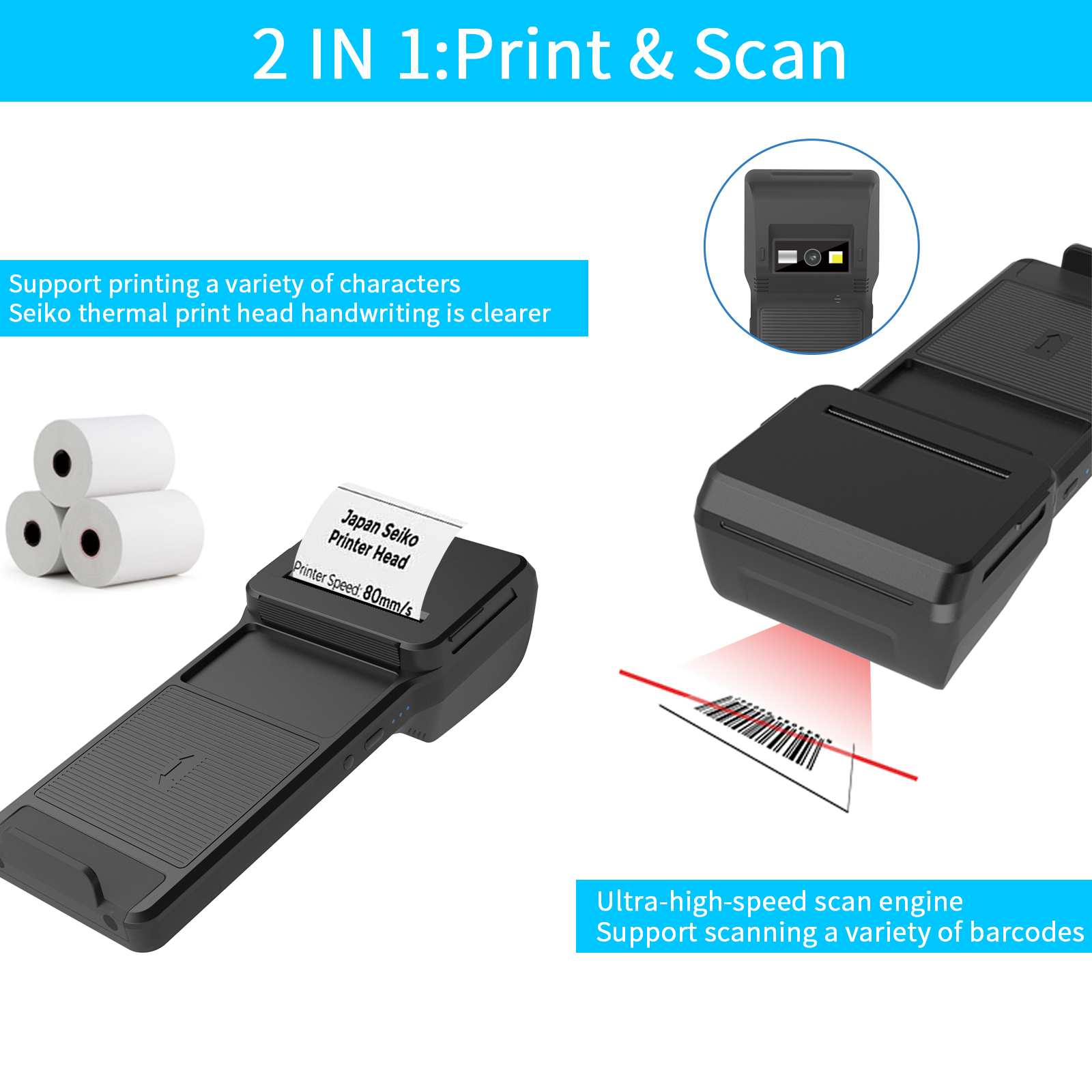

Q10 Back Clip 2-in-1 Bluetooth Terminal

Share：

Product Model：Q10

Data type：1D / 2D

Reading Mode：CMOS

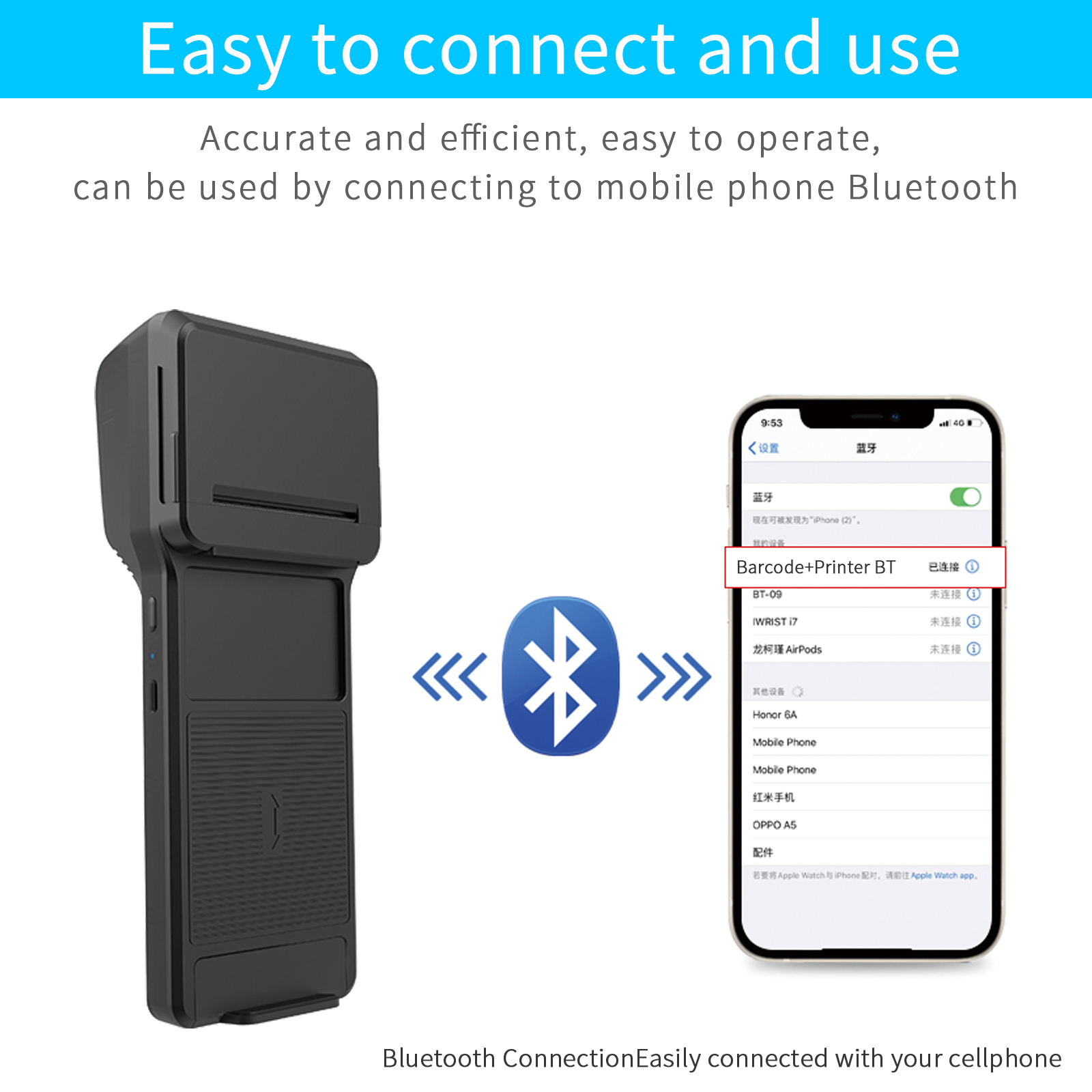

Interface：Bluetooth

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

                                                                          Printer
203DPIpixel
203DPI

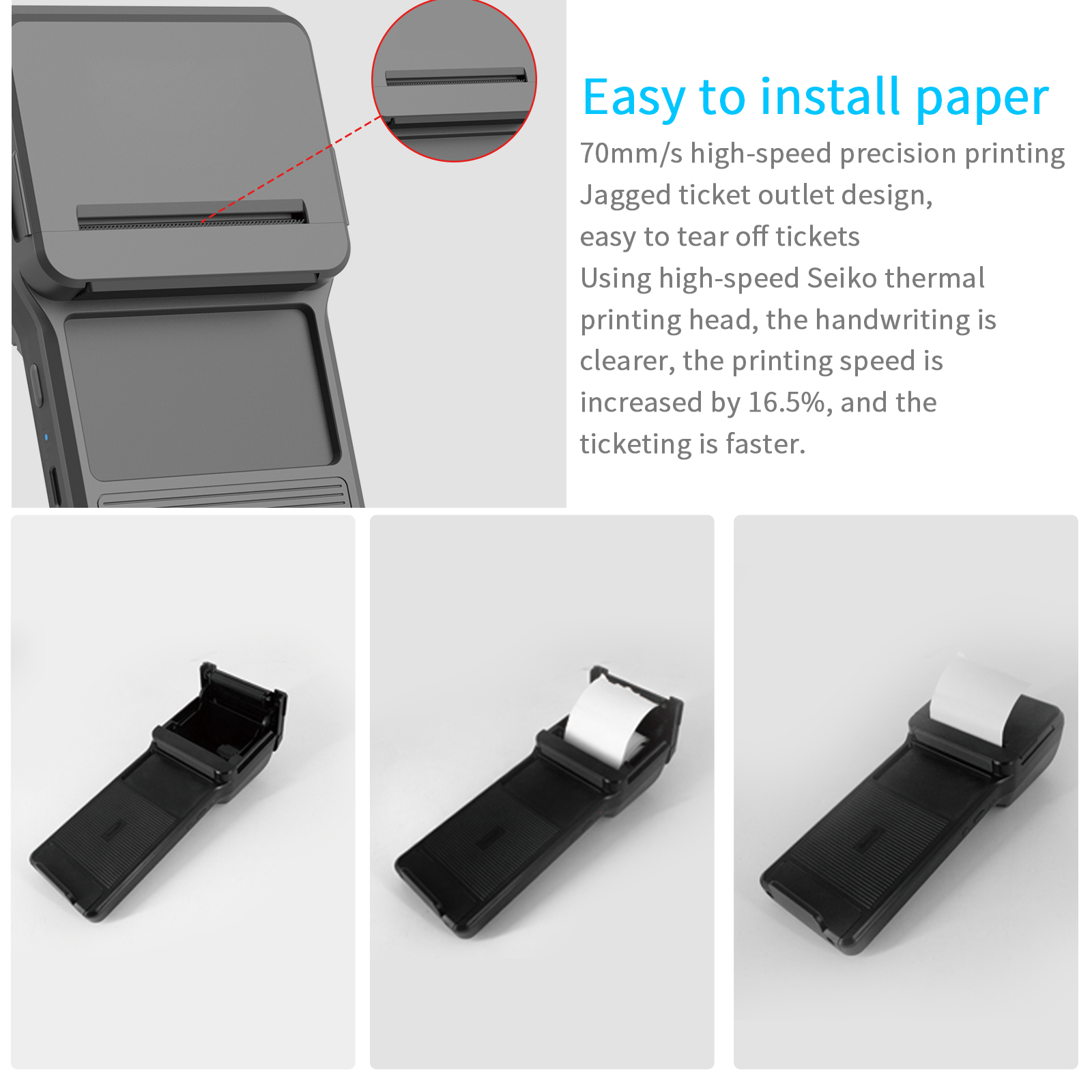

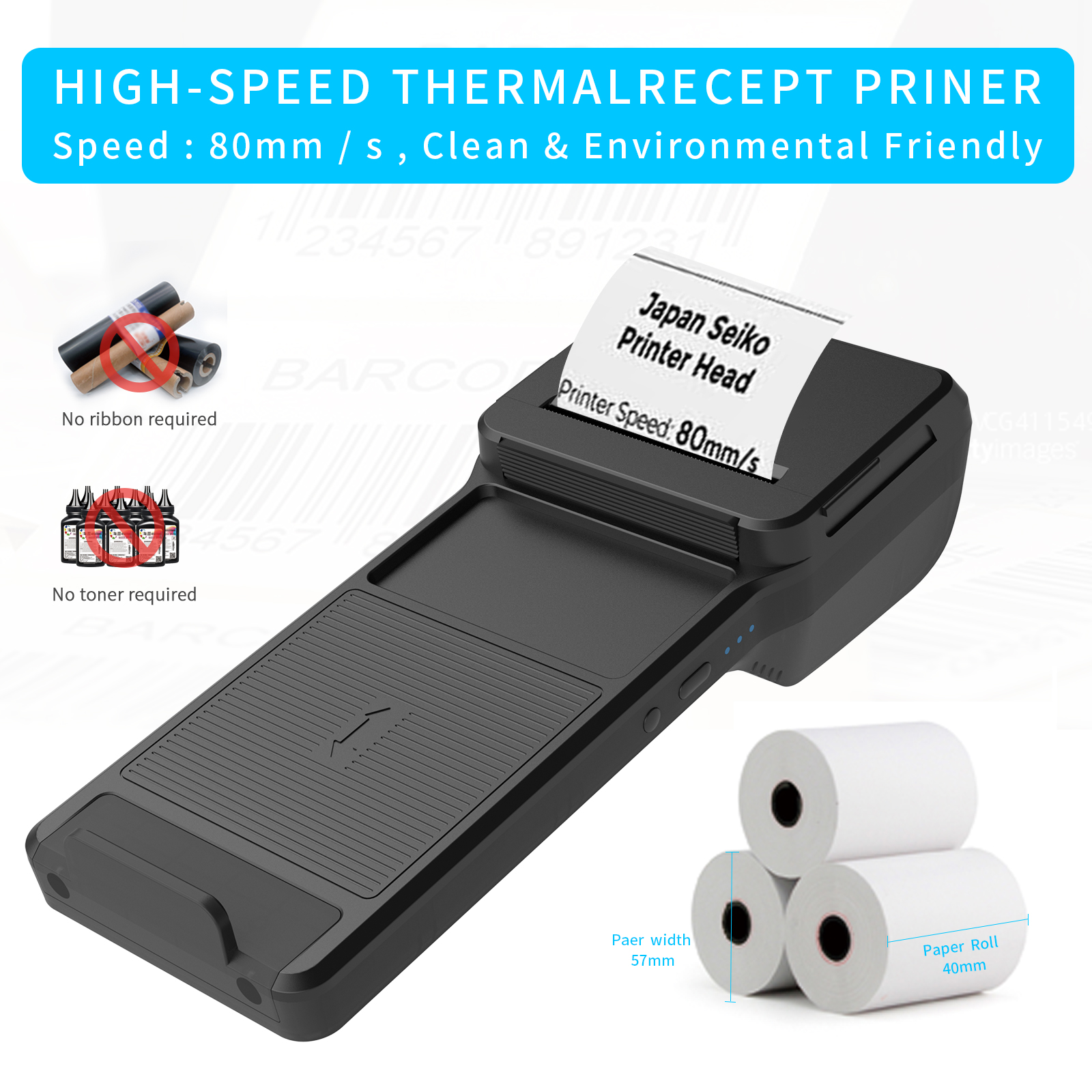

printing method
Thermal
printing speed
3-5 in/sec
Charging voltage
5V
GBK or code page+ASCII（2MB）
Working Voltage:
DC7.4V，3.0A
print time

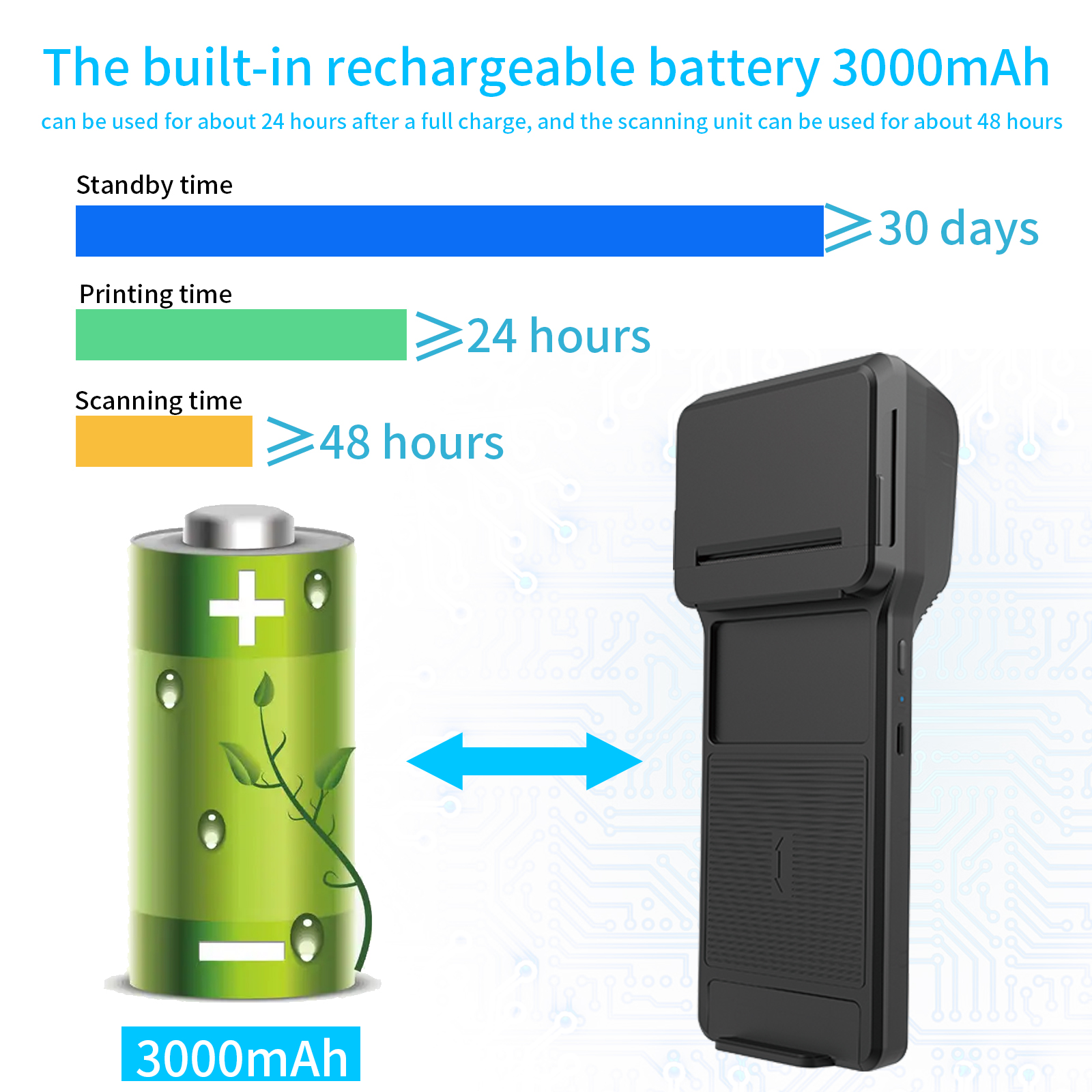

Can print ≥50m thermal paper, standby time ≥30 days
maximum width
48mm
English
ASCII9×17/12×24
printable content
English, Chinese, numbers, various symbols, pictures, barcodes.

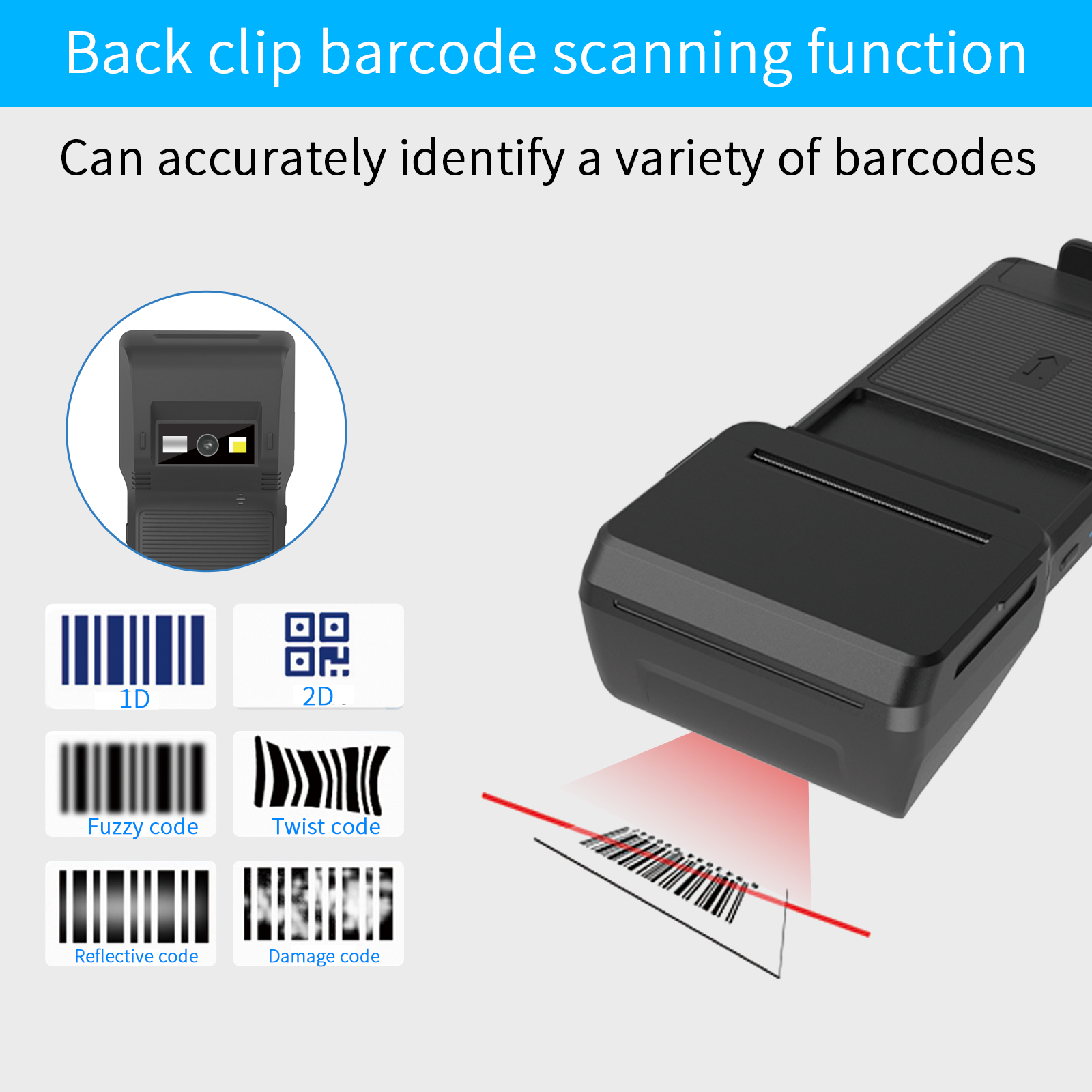

                                                                           barcode scanner
Pixel
644X488(optional）

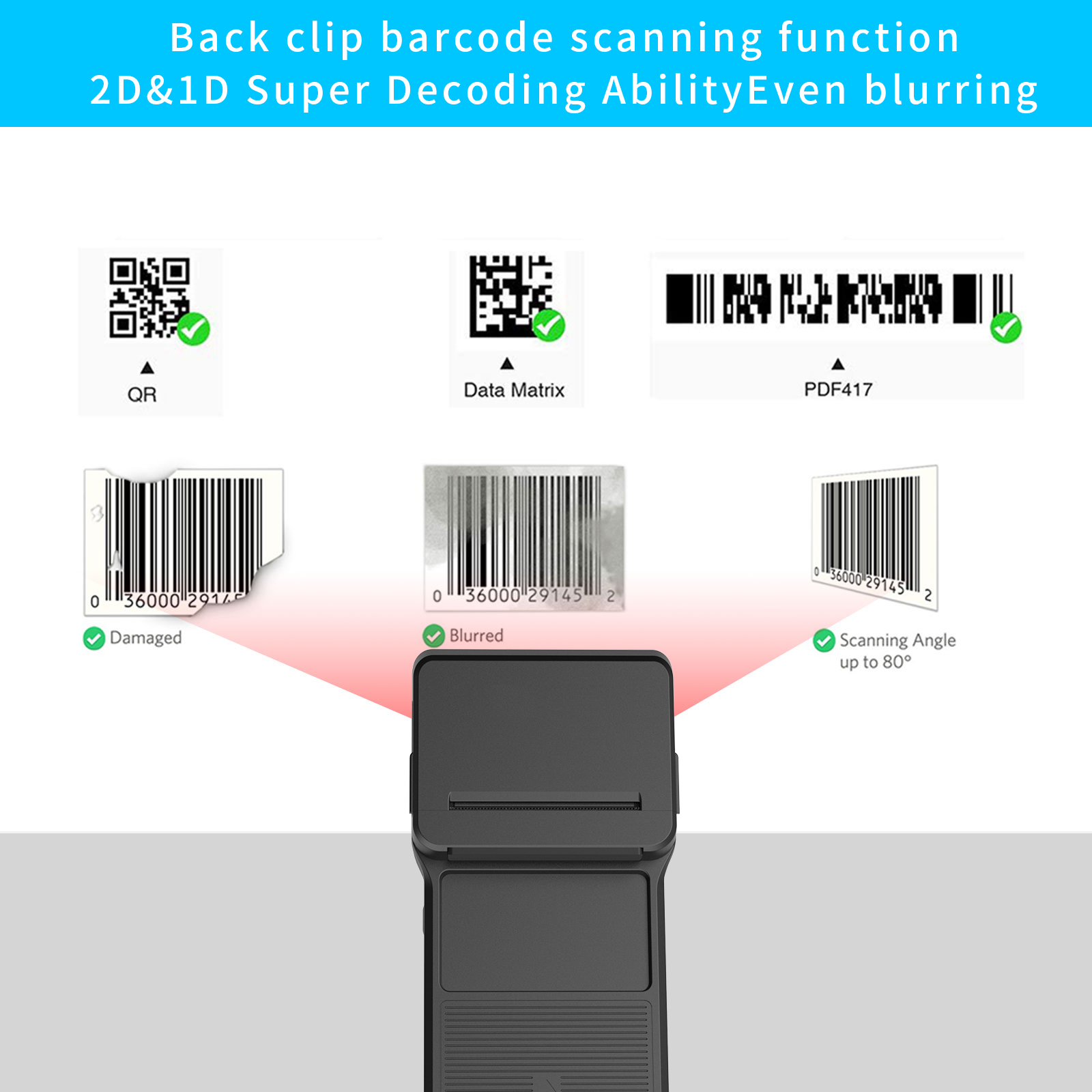

Super Decoding Ability
1D：ITF-25（Interleaved 2 0f 5）、Code39、
Code93、Code32、Codabar Matrix 2 of 5、
Industrial 25、IATA 25、MSI Plessey
Code93、Codabar
Super Decoding Ability
2D:QR Code、Micro QR、Data Matrix 、
PDF417 Code 128、EAN-13 、EAN-8、UPC-E、
UPC-A、ISBN、ISSN、Code11、
Reading accuracy
≥5mil
Read depth of field

EAN-13 45mm-269mm (13mil 13 bytes)

Code39 35mm-119mm (5mil 7 bytes)

Code128 43mm-310mm (13mil10 bytes)

QR Code 19mm-185mm (15mil30 bytes)

Data Marix 45mm-116mm (10mil30 bytes)

PDF 417 40mm-105mm (6.67mil 30 bytes)

Working current
150mA
Working Voltage
DC 3.3V
Relevant certification
CE、FMJ，ROHS
