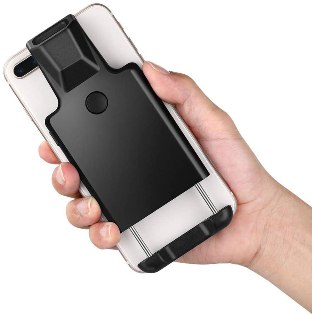

R70 Back Clip Bluetooth Barcode Scanner

Share：

Product Model：R75

Data type：Back Clip

Reading Mode：Laser / CCD / CMOS

Interface：Bluetooth

Wireless：N/A

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video

Type2D Back Clip Bluetooth barcode scanner
SensorCMOS
Barcode scanner OpticalSensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm

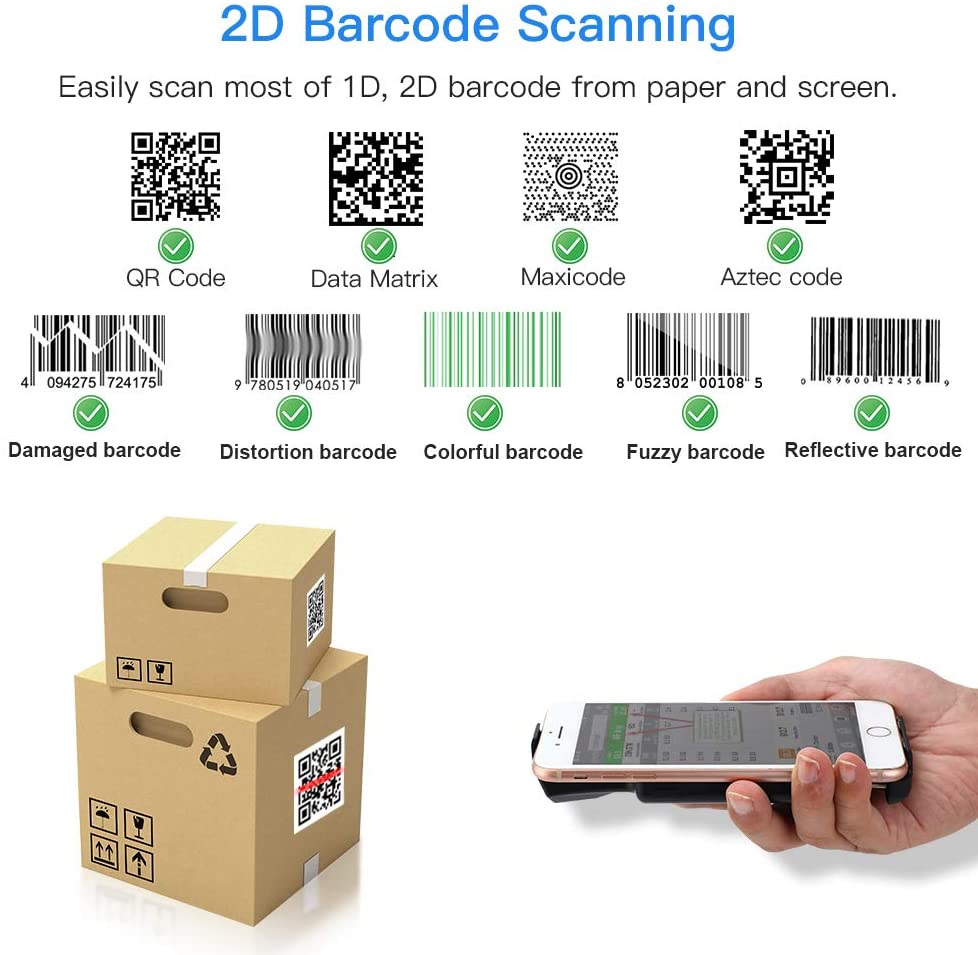

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode etc
Operation SystemSupport iOS / Android  and Windows OS
CommunicationBluetooth module 4.1
Communication Mode: SPP, HID ,BLE
Distance:10 meters (visual)
PowerBattery: 3.7V 2500mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
Memory16Mb
DurabilityTemperature in operation:
0 to 50 oC / 32 to 122 oF
Temperature in storage:
-10 to 50 oC / -4 to 140 oF

Humidity in operation:
 20 - 85% (non-condensing)
Humidity in storage:
 20 - 85% (non-condensing)

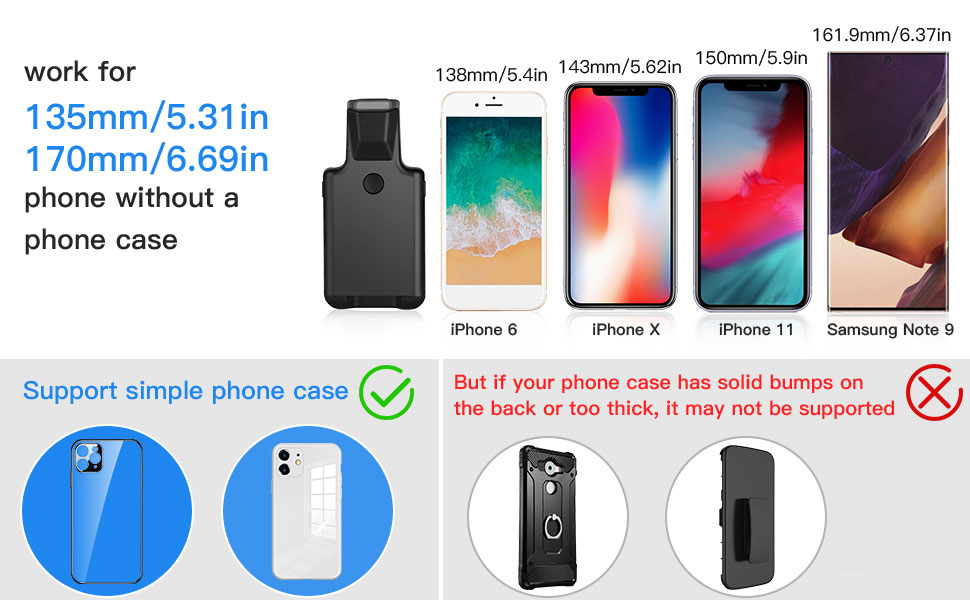

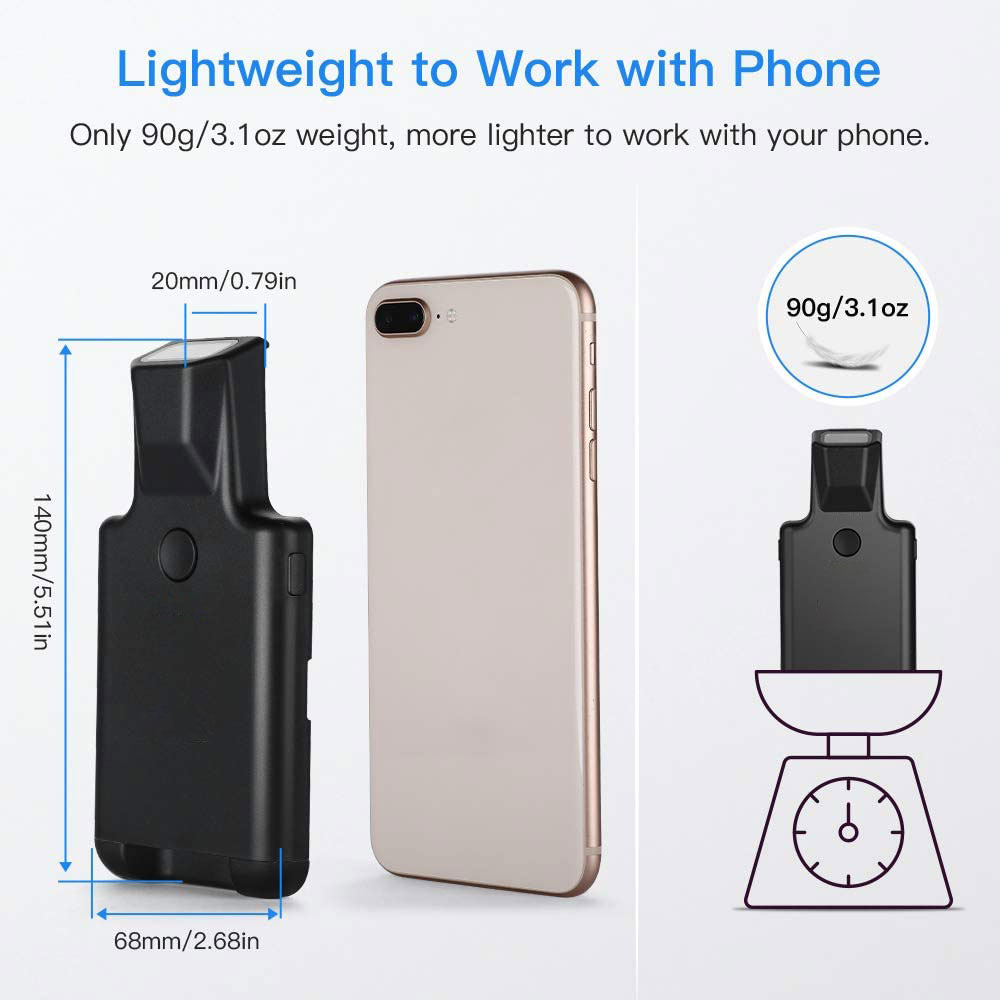

PhysicalDimensions (w x h x d):   140mm x 68mm x 20mm
Weight: 105g (include battery)
