R50 Mobile Payment Bluetooth Barcode Scanner

Share：

Product Model：R50

Data type：1D/2D

Reading Mode：Normal mode/Auto-scanning Mode

Interface：USB

Wireless：2.4G and Bluetooth

: +8615814473759

: +8615814473759

Product description Product parameters Manual Download Driver Download Video














Type2D Bluetooth image barcode scanner
SensorCMOS
Barcode scanner OpticalSensor:  640*480
Resolution: 4 mil
Print Contrast Ratio: 25%
Depth of Field: 6-30cm

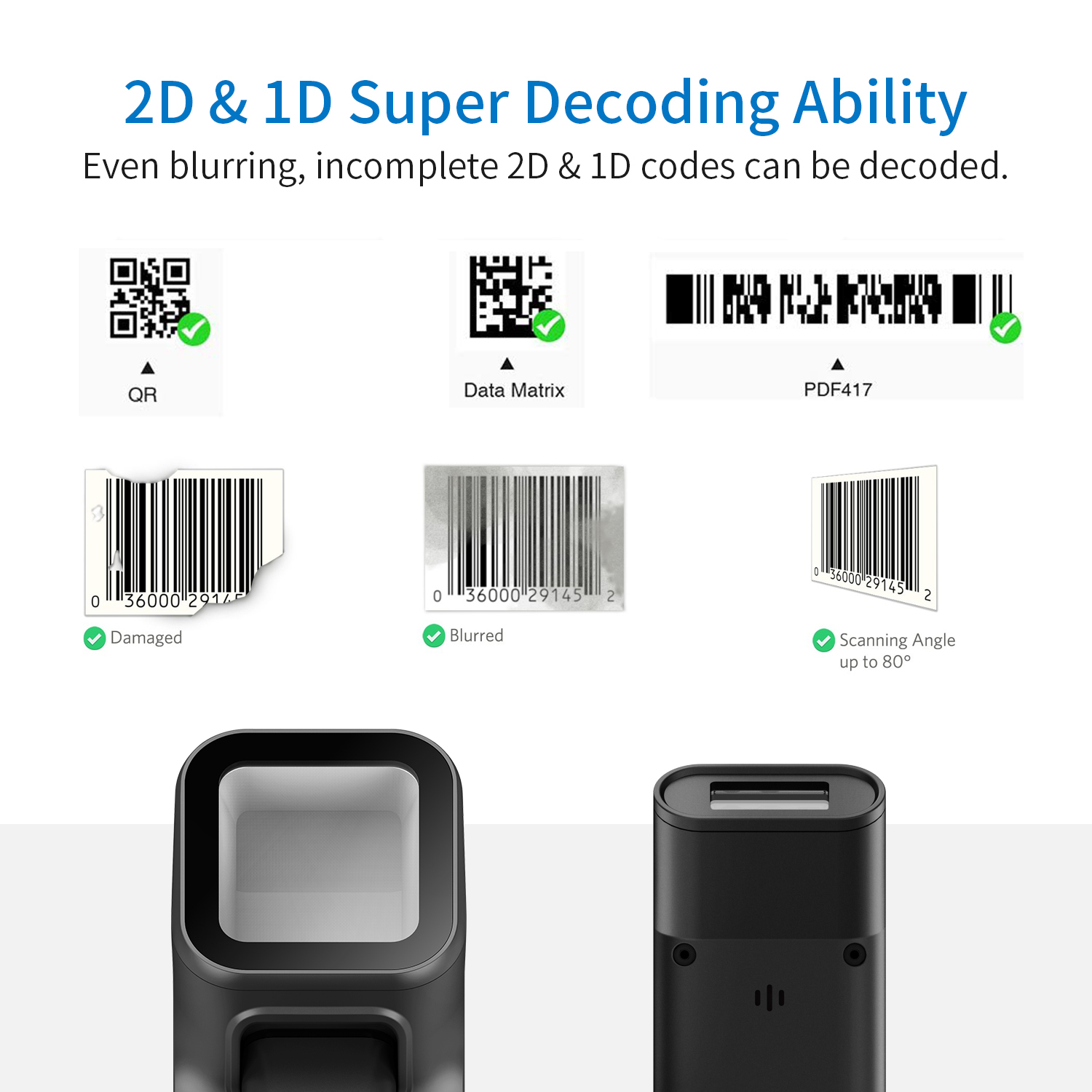

Supported Symbologies:
1D:Code128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN, Code 93, UCC/EAN-128, GS1 Databar, etc.

2D:PDF417 / QR code / Data Matrix / Aztec / Maxicode etc
Operation SystemSupport iOS / Android  and Windows OS
CommunicationBluetooth module 4.0
Communication Mode: SPP, HID ,BLE

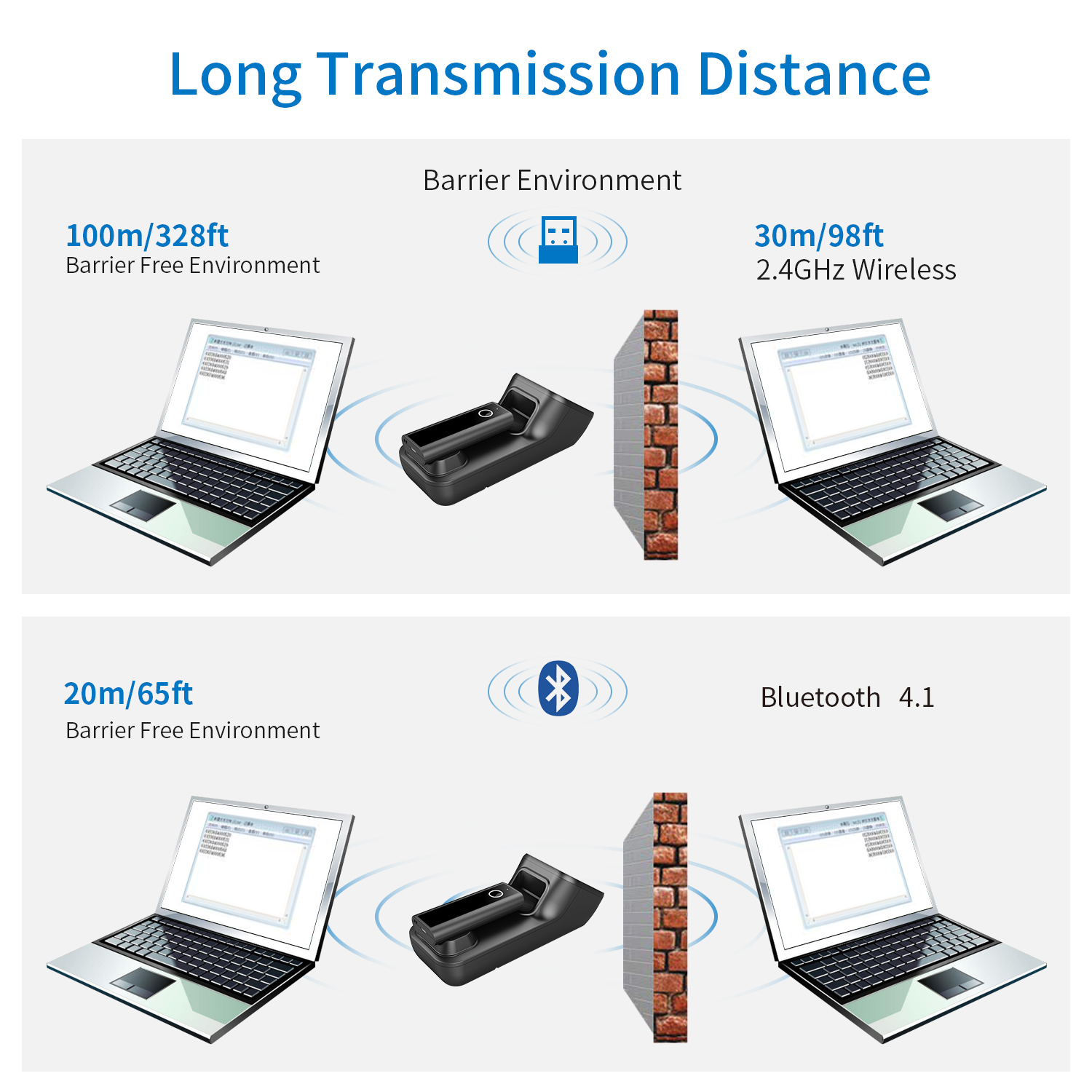

Distance:10 meters (visual)

2.4G wireless: 20-100M

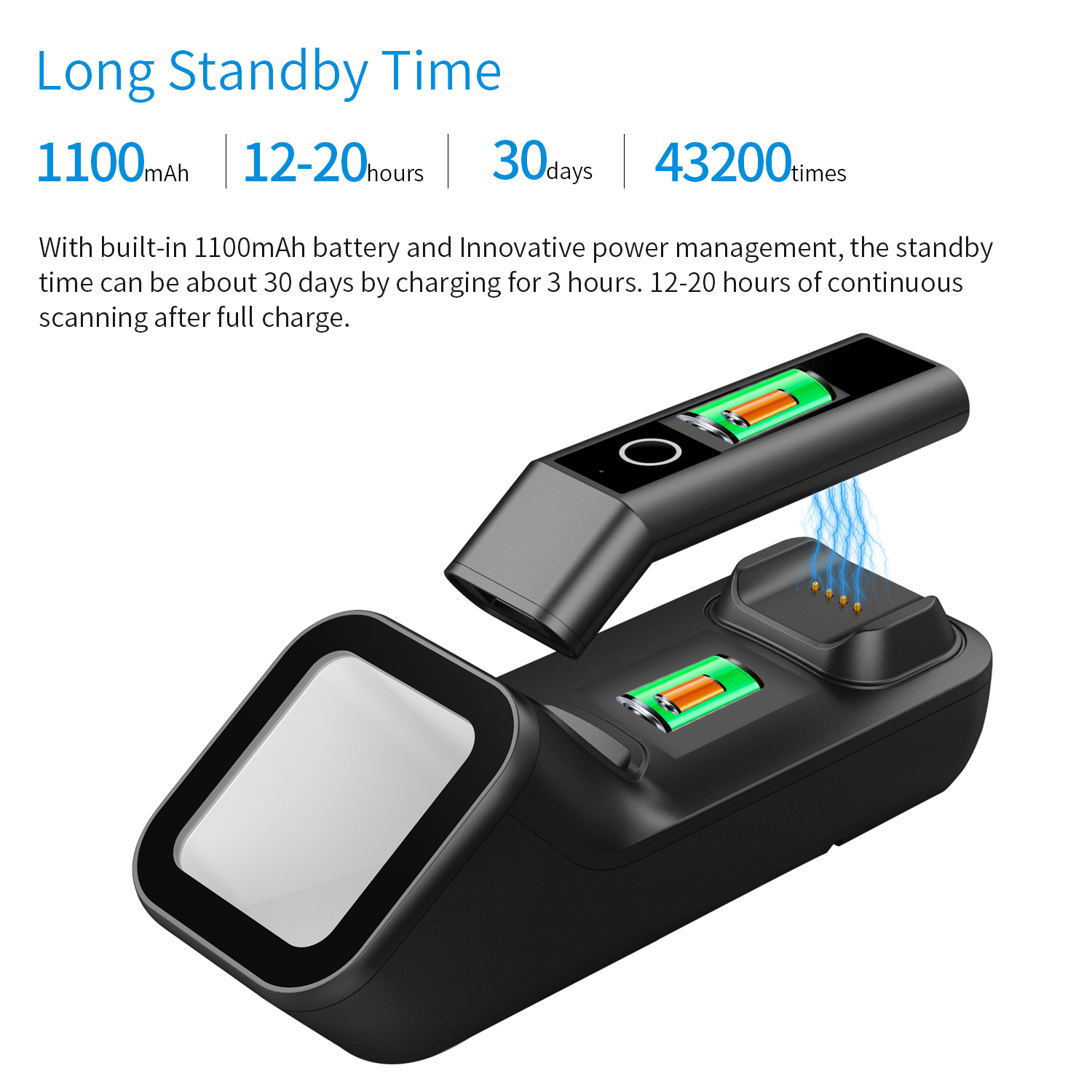

PowerBattery: 3.7V 1100mA Li-ion
Current Consumption: 30mA
Operating Current :100mA
Memory16Mb
DurabilityTemperature in operation:
0 to 50 oC / 32 to 122 oF
Temperature in storage:
-10 to 50 oC / -4 to 140 oF

Humidity in operation:
 20 - 85% (non-condensing)
Humidity in storage:
 20 - 85% (non-condensing)

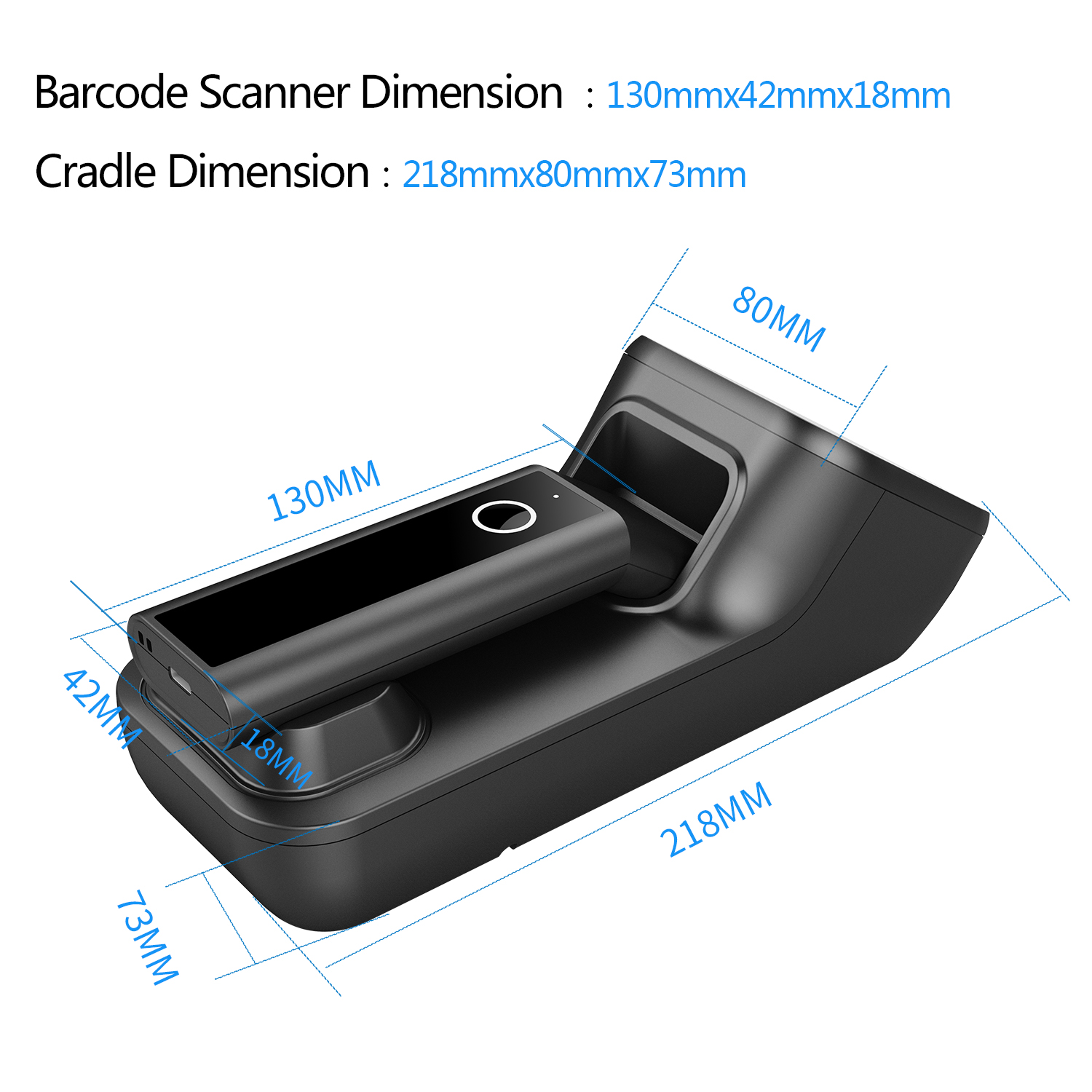

PhysicalDimensions (w x h x d):
Scanner:130mm x 42mm x 18mm
Cradle:218mm x 80mm x 73mm
Weight: 320g (include battery)


Product documentation：
